构建OMMT/HP-MIL-101高性能黄曲霉毒素B1吸附剂

doi:10.3969/j.issn.2097-2806.2025.10.005

Abstract

Abstract:

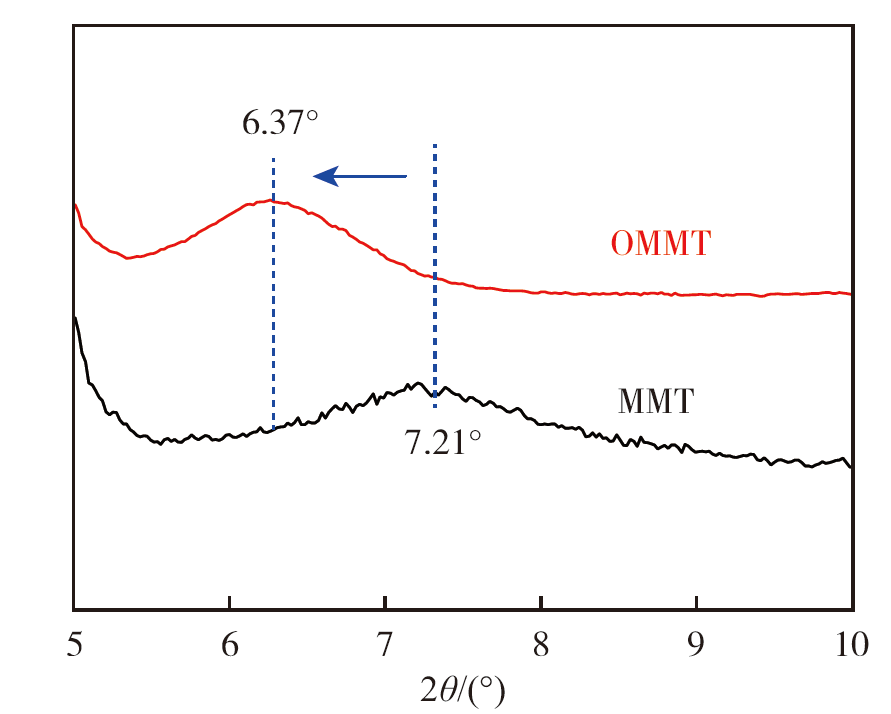

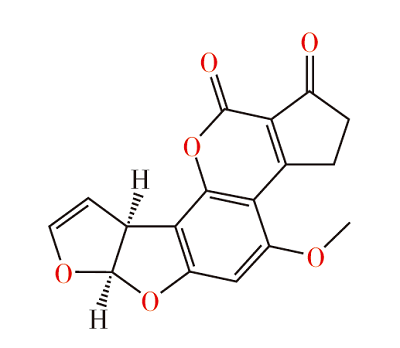

Mycotoxin is a toxic secondary metabolite and is widely detected in animal feed. Among them, aflatoxin B₁ （AFB₁） is the most noxious and common mycotoxin, and has caused serious biochemical and structural alterations in many organs mainly because their mutagenicity, teratogenicity and carcinogenicity. Therefore, it is an urgent to construct the high performance adsorbent for AFB₁. Herein, we prepared the OMMT/HP-MIL-101 adsorbent using step-by-step modification. Firstly, the MMT was modified with cetyltrimethyl ammonium bromide （CTAB） to get OMMT. Compared with MMT, the interlayer spacing becomes bigger and exposes more adsorption sites, which can enhance the interaction between AFB₁ and OMMT. Secondly, the OMMT was combined with MIL-101 with high specific surface area to form OMMT/MIL-101. The OMMT/MIL-101 exhibits the high specific surface area, which can provide the wide adsorption space for AFB₁. Finally, the OMMT/HP-MIL-101 was fabricated by the treatment of methanol solvent at high temperature to obtain OMMT/HP-MIL-101. OMMT/HP-MIL-101 has higher specific surface area （1 147.71 m²/g）, rich pore structure （micropore, mesopore and macropore）, exposed more adsorption sites leading to the high adsorption capacity for AFB₁（17.35 µg/mg）. In addition, the Freundlich isotherm is found to fit well in defining the adsorption performance of AFB₁ on OMMT/HP-MIL-101, indicating a multi-layer adsorption process. This work displays that OMMT/HP-MIL-101 can serve as the powerful candidate for the adsorption of AFB₁, and provides a theoretical basis for the construction of new porous adsorbents for AFB₁.

Key words: metal-organic frameworks, hierarchical pore, montmorillonite, aflatoxin B₁

CLC Number:

S816

Shasha Hong,Peng Wang,Erdong Li,Shang Guo. Construction of an OMMT/HP-MIL-101 adsorbent with high adsorption performance of AFB₁[J].China Surfactant Detergent & Cosmetics, 2025, 55(10): 1260-1267.

Figures/Tables 13

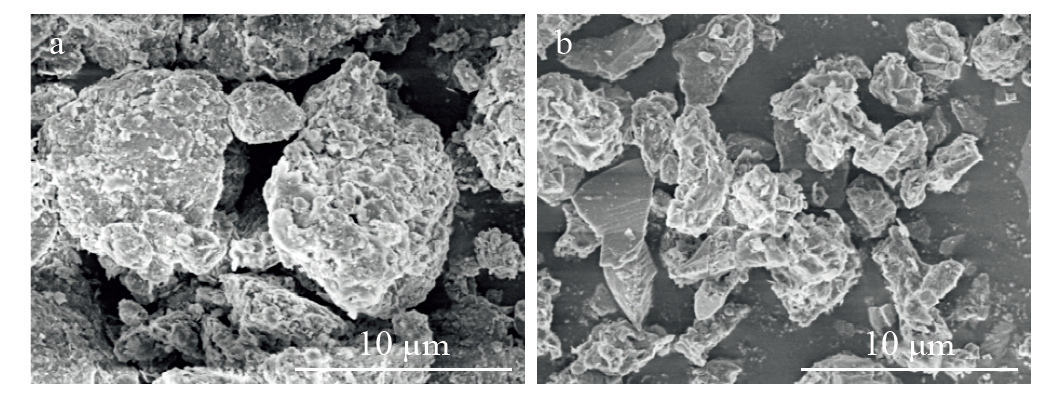

Fig. 1

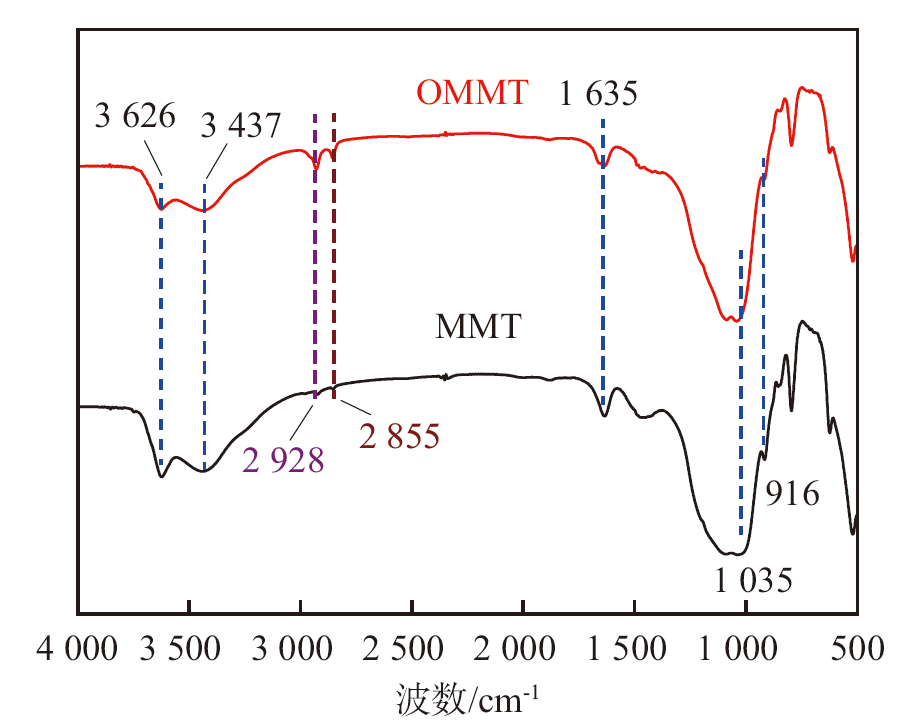

Fig. 2

Fig. 3

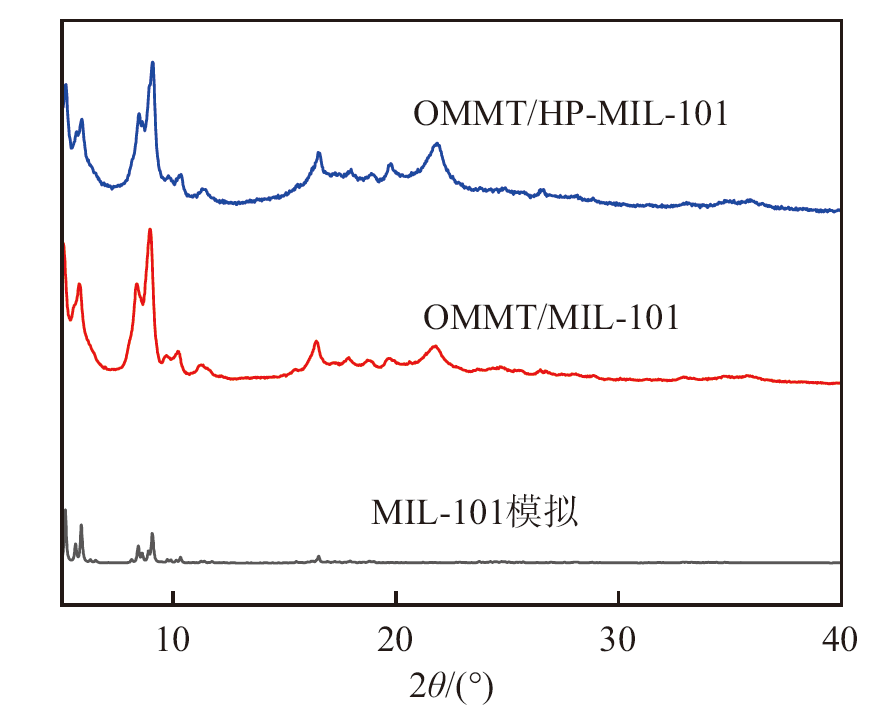

Fig. 4

Fig. 5

Fig. 6

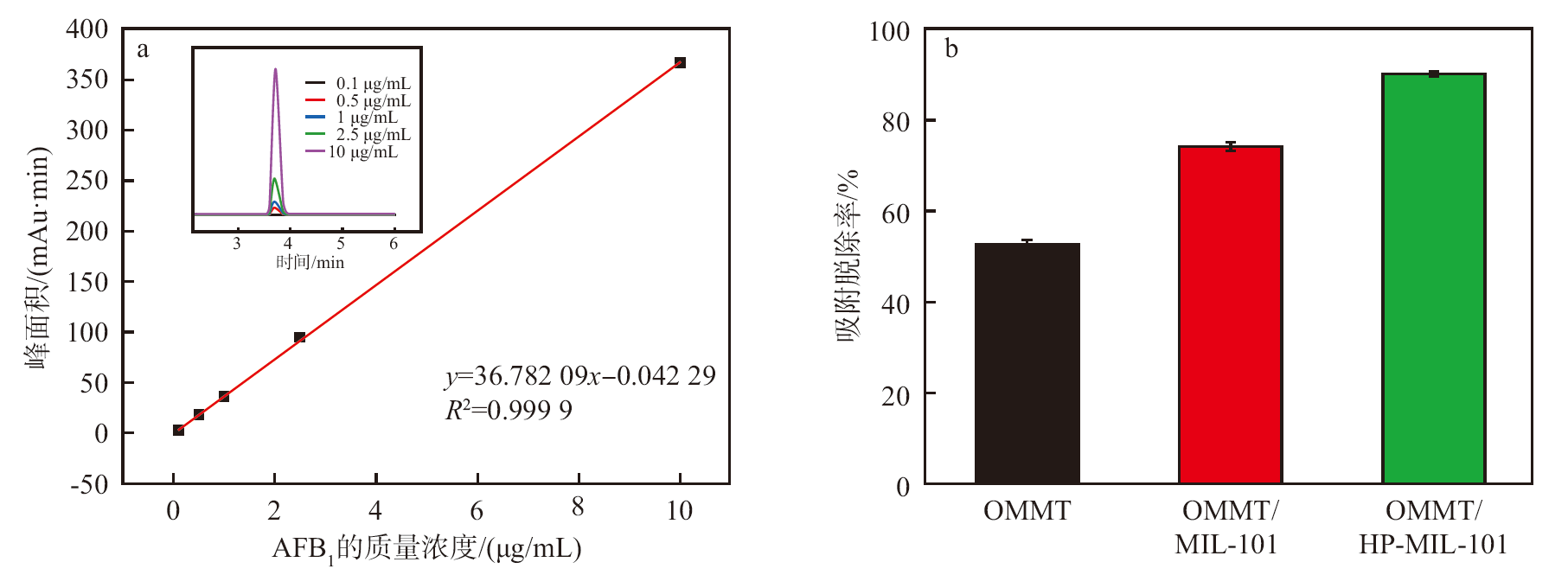

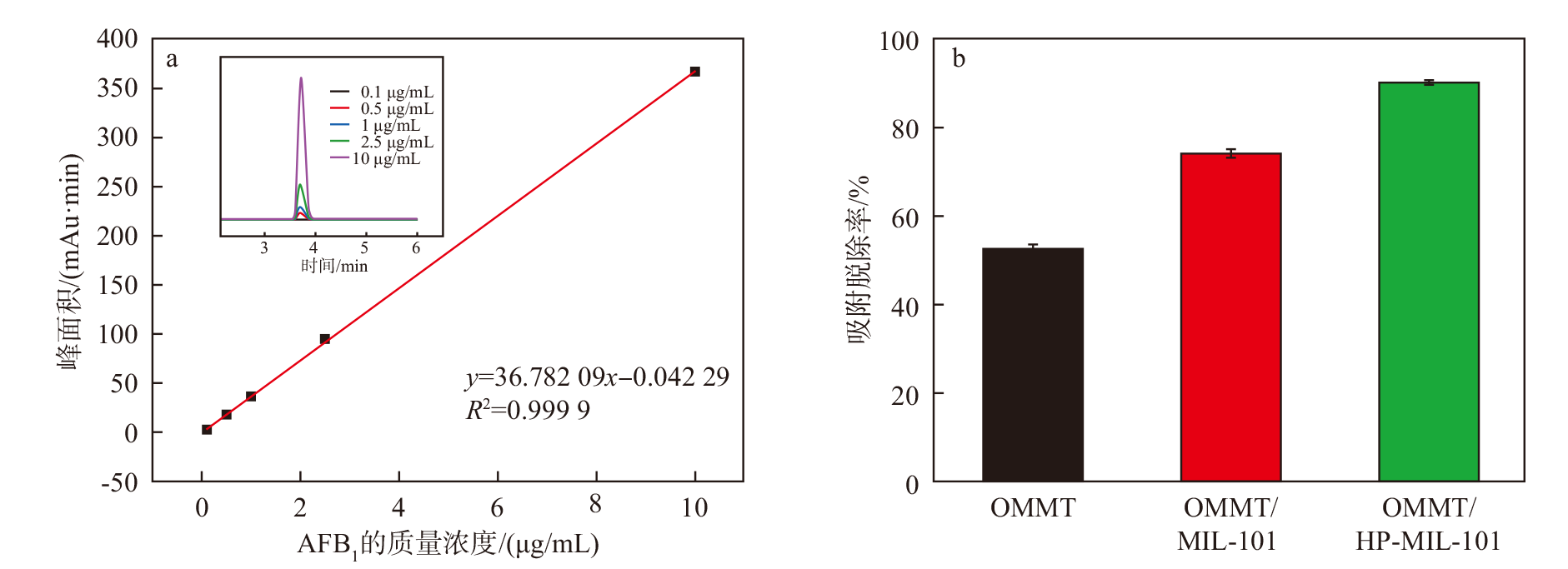

Fig. 7

Fig. 8

Fig. 9

Tab. 1

Tab. 2

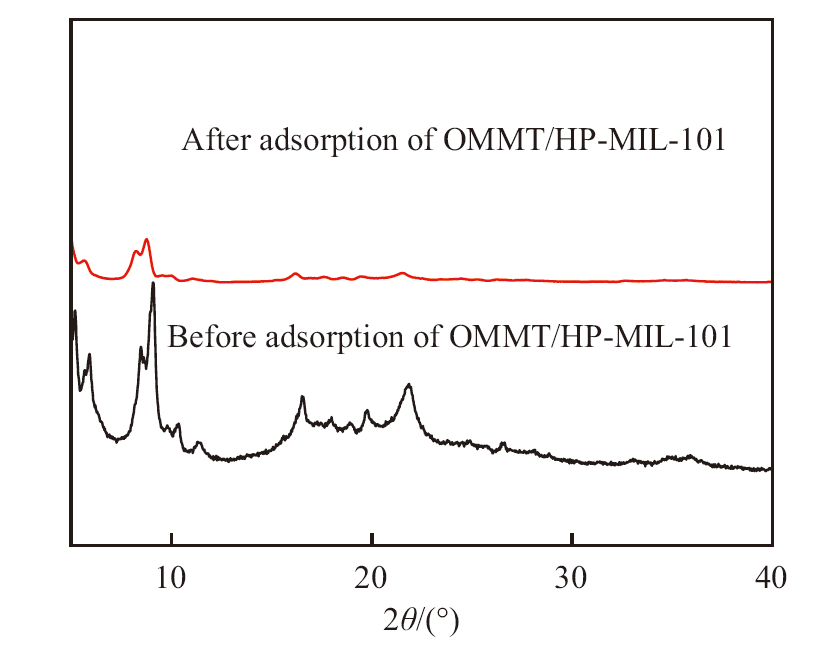

Fig. 10

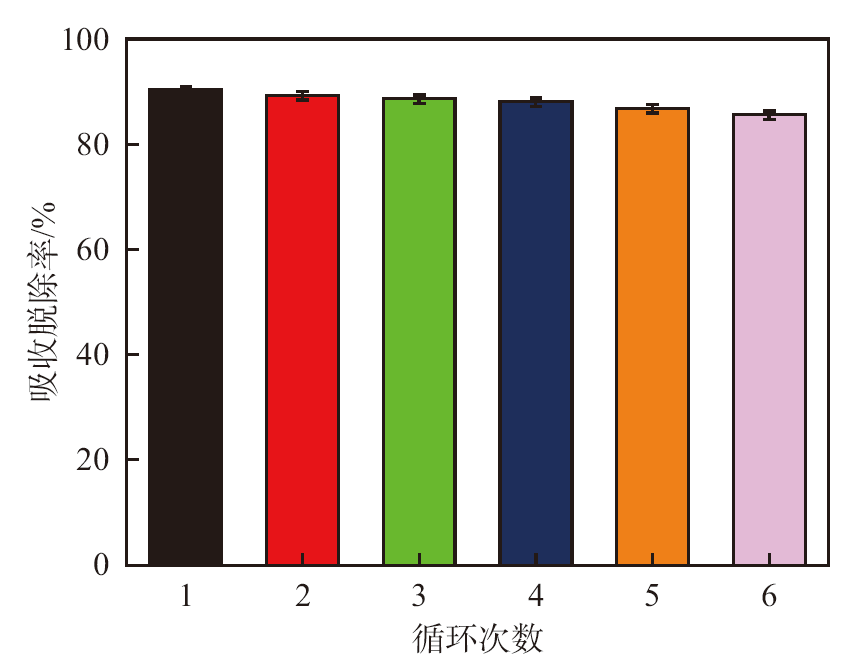

Fig. 11

References 30

[1]	Wei D, Pan A, Zhang C, et al. Fast extraction of aflatoxins, ochratoxins and enniatins from maize with magnetic covalent organic framework prior to HPLC-MS/MS detection[J]. Food Chemistry, 2023, 404: 134464. doi: 10.1016/j.foodchem.2022.134464
[2]	Shabeer S, Asad S, Jamal A, et al. Aflatoxin contamination, its impact and management strategies: An updated review[J]. Toxins, 2022, 14 (5) : 307.
[3]	Dadmehr M, Shahi S C, Malekkiani M, et al. A stem-loop like aptasensor for sensitive detection of aflatoxin based on graphene oxide/AuNPs nanocomposite platform[J]. Food Chemistry, 2023, 402: 134212. doi: 10.1016/j.foodchem.2022.134212
[4]	Vila-Donat P, Marín S, Sanchis V, et al. A review of the mycotoxin adsorbing agents, with an emphasis on their multi-binding capacity, for animal feed decontamination[J]. Food and Chemical Toxicology, 2018, 114: 246-259. doi: S0278-6915(18)30118-2 pmid: 29476792
[5]	Li Y, Tian G, Dong G, et al. Research progress on the raw and modified montmorillonites as adsorbents for mycotoxins: A review J]. Applied Clay Science, 2018, 163: 299-311. doi: 10.1016/j.clay.2018.07.032
[6]	Zhao Y, Han X, Zhang N, et al. Removal of aflatoxin B₁ and zearalenone in mixed aqueous solution by palygorskite-montmorillonite materials in situ prepared from palygorskite mineral[J]. Langmuir, 2023, 39 (7) : 2797-2807. doi: 10.1021/acs.langmuir.2c03289 pmid: 36763007
[7]	Jiang M, Wang K, Li G, et al. Stabilization of arsenic, antimony, and lead in contaminated soil with montmorillonite modified by ferrihydrite: Efficiency and mechanism[J]. Chemical Engineering Journal, 2023, 457: 141182. doi: 10.1016/j.cej.2022.141182
[8]	Madejová J, Barlog M, Slaný M, et al. Advanced materials based on montmorillonite modified with poly(ethylenimine) and poly(2-methyl-2-oxazoline): Experimental and DFT study[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2023, 659: 130784. doi: 10.1016/j.colsurfa.2022.130784
[9]	Mao J, Lv G, Zhou R. Effect of acid-treated and hexadecyltrimethylammonium bromide-modified montmorillonites on adsorption performance of mycotoxins[J]. Environmental Science and Pollution Research, 2020, 27 (4) : 4284-4293. doi: 10.1007/s11356-019-07118-2
[10]	Liu X, Shan Y, Zhang S, et al. Application of metal organic framework in wastewater treatment[J]. Green Energy & Environment, 2023, 8 (3) : 698-721.
[11]	Song C, Qin J. High-performance fabricated nano-adsorbents as emerging approach for removal of mycotoxins: a review[J]. International Journal of Food Science & Technology, 2022, 57 (9) : 5781-5789.
[12]	Zhang Z, Zhang Y, Jayan H, et al. Recent and emerging trends of metal-organic frameworks (MOFs)-based sensors for detecting food contaminants: A critical and comprehensive review[J]. Food Chemistry, 2024, 448: 139051. doi: 10.1016/j.foodchem.2024.139051
[13]	Liang Y, He J, Huang Z, et al. An amino-functionalized zirconium-based metal-organic framework of type UiO-66-NH (2) covered with a molecularly imprinted polymer as a sorbent for the extraction of aflatoxins AFB1, AFB2, AFG1 and AFG2 from grain[J]. Mikrochimica Acta, 2019, 187 (1) : 32.
[14]	Wu W, Li Y, Xu Q, et al. Polydopamine-coated HKUST MOFs-based strip lateral flow immunoassay for on-site ultrasensitive detection of aflatoxin B₁ in foods[J]. Food Control, 2023, 152: 109864. doi: 10.1016/j.foodcont.2023.109864
[15]	Li Q, Li Q, Wang Z, et al. Recent advances in hierarchical porous engineering of MOFs and their derived materials for catalytic and battery: methods and application[J]. Small, 2024, 20 (8) : 2303473.
[16]	Han L, Qin P, Li M, et al. Hierarchically porous zirconium-based metal-organic frameworks for rapid adsorption and enrichment of sulfonamide antibiotics[J]. Chemical Engineering Journal, 2023, 456: 140969. doi: 10.1016/j.cej.2022.140969
[17]	Mertsoy E Y, Sert E, Atalay S, et al. Deep eutectic solvent incorporated AC/MIL-101 hybrid material catalysts for the production of fuel additives (acetins) from by-product glycerol[J]. Materials Today Sustainability, 2023, 24: 100499. doi: 10.1016/j.mtsust.2023.100499
[18]	Zhang H, Yu J, Wu S. Effect of montmorillonite organic modification on ultraviolet aging properties of SBS modified bitumen[J]. Construction and Building Materials, 2012, 27 (1) : 553-559. doi: 10.1016/j.conbuildmat.2011.07.008
[19]	Tsumori N, Chen L, Wang Q, et al. Quasi-MOF: Exposing inorganic nodes to guest metal nanoparticles for drastically enhanced catalytic activity[J]. Chem, 2018, 4 (4) : 845-856. doi: 10.1016/j.chempr.2018.03.009
[20]	Wang P, Li X, Zhang P, et al. Transitional MOFs: exposing metal sites with porosity for enhancing catalytic reaction performance[J]. ACS Applied Materials & Interfaces, 2020, 12 (21) : 23968-23975.
[21]	Wang F, Li Z, Jia H, et al. An ultralow concentration of Al-MOFs for turn-on fluorescence detection of aflatoxin B₁ in tea samples[J]. Food Chemistry, 2022, 383: 132389. doi: 10.1016/j.foodchem.2022.132389
[22]	Li Y N, Zhou Y, Wang R, et al. Removal of aflatoxin B₁ from aqueous solution using amino-grafted magnetic mesoporous silica prepared from rice husk[J]. Food Chemistry, 2022, 389: 132987. doi: 10.1016/j.foodchem.2022.132987
[23]	Ji J, Xie W. Removal of aflatoxin B₁ from contaminated peanut oils using magnetic attapulgite[J]. Food Chemistry, 2021, 339: 128072. doi: 10.1016/j.foodchem.2020.128072
[24]	Ji J, Xie W. Detoxification of aflatoxin B₁ by magnetic graphene composite adsorbents from contaminated oils[J]. Journal of Hazardous Materials, 2020, 381: 120915. doi: 10.1016/j.jhazmat.2019.120915
[25]	Sun Z, Lian C, Li C, et al. Investigations on organo-montmorillonites modified by binary nonionic/zwitterionic surfactant mixtures for simultaneous adsorption of aflatoxin B₁ and zearalenone[J]. Journal of Colloid and Interface Science, 2020, 565: 11-22. doi: 10.1016/j.jcis.2020.01.013
[26]	Rasheed U, Ain Q U, Liu B. Integration of Fe-MOF-laccase-magnetic biochar: From rational designing of a biocatalyst to aflatoxin B₁ decontamination of peanut oil[J]. Chemosphere, 2024, 367: 143424. doi: 10.1016/j.chemosphere.2024.143424
[27]	Ma F, Cai X, Mao J, et al. Adsorptive removal of aflatoxin B₁ from vegetable oils via novel adsorbents derived from a metal-organic framework[J]. Journal of Hazardous Materials, 2021, 412: 125170. doi: 10.1016/j.jhazmat.2021.125170
[28]	Li C Y, Liu J M, Wang Z H, et al. Integration of Fe₃O₄@UiO-66-NH₂@MON core-shell structured adsorbents for specific preconcentration and sensitive determination of aflatoxins against complex sample matrix[J]. Journal of Hazardous Materials, 2020, 384: 121348. doi: 10.1016/j.jhazmat.2019.121348
[29]	Wang J, Guo X. Adsorption isotherm models: Classification, physical meaning, application and solving method[J]. Chemosphere, 2020, 258: 127279. doi: 10.1016/j.chemosphere.2020.127279
[30]	Al-Ghouti M A, Da’ana D A. Guidelines for the use and interpretation of adsorption isotherm models: A review[J]. Journal of Hazardous Materials, 2020, 393: 122383. doi: 10.1016/j.jhazmat.2020.122383

吸附剂类型	吸附剂名称	吸附脱除率/%	吸附量/（mg/g）	参考文献
磁性介孔硅	NMMS	93.43	0.17	[22]
磁性凹凸棒石	Fe₃O₄@ATP	72.89~86.62	0.05	[23]
磁性石墨烯复合物	MGO	86~93	1.68	[24]
改性蒙脱石	1.5NZMt	NA	4.87	[25]
金属有机骨架衍生材料	Fe-BTC@Lac@FB	90	11.20	[26]
	CuBTC-MOF	NA	17.21	[27]
	Fe₃O₄@UiO-66-NH₂@MON	NA	19.60	[28]
	OMMT/HP-MIL-101	86.76~99.77	17.35	本工作

Langmuir	Freundlich
$q_{\mathrm{e}}=\frac{K_{\mathrm{L}} q_{\mathrm{m}} \rho_{\mathrm{e}}}{1+K_{\mathrm{L}} \rho_{\mathrm{e}}}$	q_e= K_fρ_e^1/ⁿ
q_m= 127.9 μg/mg	K_f= 2.440 μg/mg
K_L= 0.019 54 mL/μg	n = 1.051
R² = 0.992 8	R² = 0.999 8

Construction of an OMMT/HP-MIL-101 adsorbent with high adsorption performance of AFB₁

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 13

References 30

Related Articles 8

Metrics

Comments

Recommended 0

[1]	Bao Li,Xinyu Zhao,Lixin Wu. Applications of metal-organic framework materials in cosmetics [J]. China Surfactant Detergent & Cosmetics, 2025, 55(10): 1221-1235.
[2]	Ze-yu YANG,Wan-xu WANG,Guo-yong WANG,Xiu-mei TAI. Preparation of modified montmorillonite by BS-12 and application in Pickering emulsion [J]. China Surfactant Detergent & Cosmetics, 2020, 50(3): 177-181.
[3]	DAI Lu-xun,LIANG Shao-bin,CHEN Yao,XIE Xiang-li,LI Cun-jun,WANG Lin-jiang. Exfoliation of layered double hydroxide and montmorillonite and their self-assembly [J]. China Surfactant Detergent & Cosmetics, 2018, 48(7): 392-398.
[4]	HU De-ping, ZHANG Xue-qin, DAI Zi-hao, CHEN Xiu-qiong, YAN Hui-qiong, LIN Qiang. Preparation of modified montmorillonite and its function for stabilizing Pickering emulsions in cooperation with alginic acid derivative [J]. China Surfactant Detergent & Cosmetics, 2017, 47(11): 627-632.
[5]	GAO Yan-li,SUN Chen-ya,QI Li-yun,FANG Yun. Preparation of organo-montmorillonite modified with quaternary ammonium surfactant and its adsorption behavior for phenol [J]. China Surfactant Detergent & Cosmetics, 2016, 46(2): 61-65.
[6]	YAN Hui-qiong,CHEN Xiu-qiong,SONG Huang-wang,LI Jia-cheng,WANG Xiang-hui,LIN Qiang. Preparation of liquid paraffin/water Pickering emulsions stabilized by modified montmorillonite with wet ball mill method [J]. China Surfactant Detergent & Cosmetics, 2016, 46(12): 697-702.
[7]	ZHANG Yong-li, LI Jia-cheng, FENG Yu-hong, YAN Hui-qiong, XIANG Fei, CHEN Xiu-qiong. Didodecyldimethylammonium bromide modified montmorillonite and adsorption of pesticide acetamiprid on it [J]. China Surfactant Detergent & Cosmetics, 2015, 45(6): 323-327.
[8]	SUN Chen-ya, GAO Yan-li, FANG Yun, QI Li-yun, JIANG Cui-cui. Preparation and properties of organo-montmorillonites modified separately with quaternary ammonium surfactant and Gemini quaternary ammonium surfactant [J]. China Surfactant Detergent & Cosmetics, 2015, 45(2): 61-65.

Construction of an OMMT/HP-MIL-101 adsorbent with high adsorption performance of AFB1

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 13

References 30

Related Articles 8

Metrics

Comments

Recommended 0

Construction of an OMMT/HP-MIL-101 adsorbent with high adsorption performance of AFB₁
