银纳米簇二维组装体合成、发光与抑菌性能

doi:10.3969/j.issn.2097-2806.2025.10.002

Abstract

Abstract:

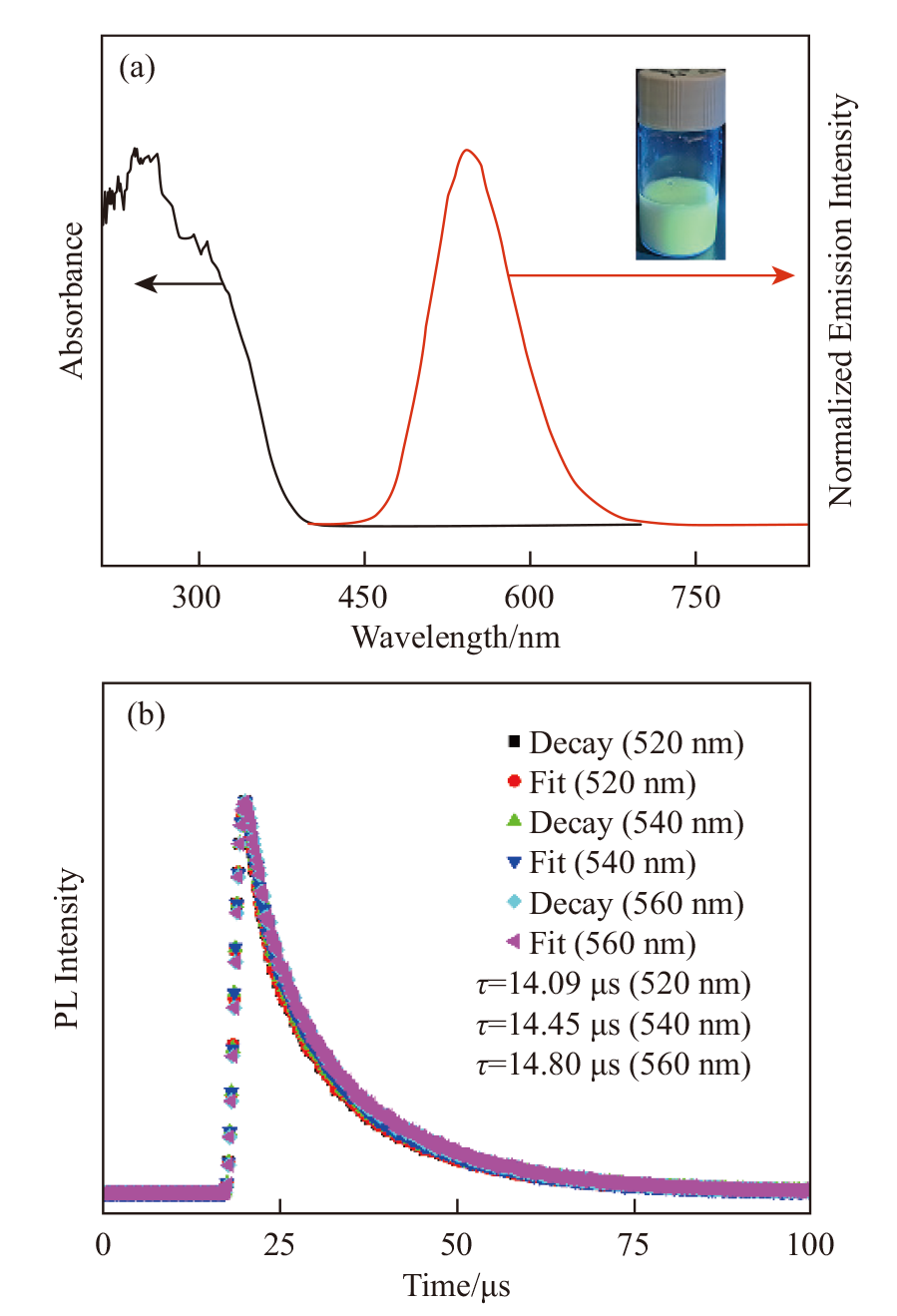

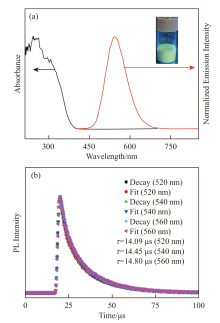

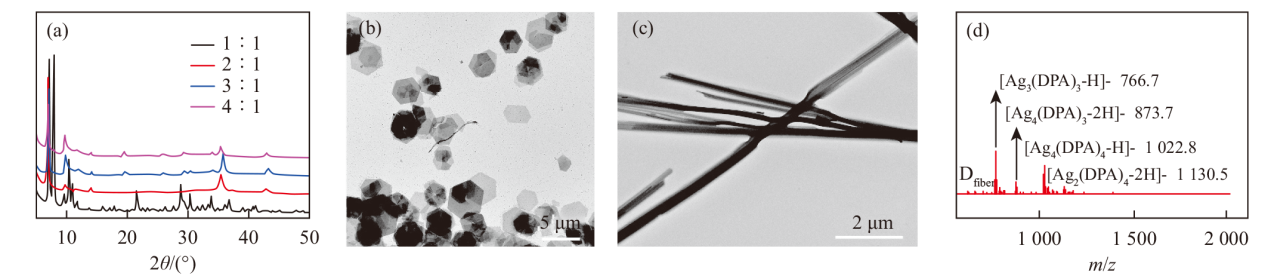

Ag （I）-S complex assemblies of two-dimensional （2D） sheet structure have good application prospects in luminescence, catalysis, and bacteriostatic performance. D-penicillamine is used as a capping agent to prepare Ag （I） -S complex assembly by “one-pot” method at room temperature, which is in detail characterized by ATR-FTIR spectrum, X-ray photoelectron spectrum, NMR spectrum, elemental analysis, high-resolution mass spectrum, and thermogravimetric analysis. Transmission electron microscope, cryogenic-selected area electron diffraction, atomic force microscope, and powder X-ray diffraction analyses indicate that Ag （I） -S complex assembly is a type of novel sheet structure comprised of Ag nanoclusters, in which the single sheet merely possesses a thickness of around 8.3 nm. The 2D Ag （I） -S nanocluster assembly H [Ag₅（DPA） ₆] shows intense green emission, and its absolute luminescent quantum yield is found to be as high as 10.6%, the photoluminescent lifetime at 540 nm is around 14.5 µs, and thus the assembly luminescence is believed to arise from triplet ligand-to-metal-metal charge transfer transition （³LMMCT）. The Ag （I） nanocluster assembly of sheet structure can be formed only when the molar ratio of D-penicillamine and silver nitrate is larger than 2, which suggests that in this case Ag nanoclusters H [Ag₅（DPA） ₆] can undergo oriented attachment with each other into close-packed sheet supramolecular assembly through Ag （I） …Ag （I） interactions and inter-ligand hydrogen bonds. In addition, the Ag （I） -S assembly shows good bacteriostatic performance, which functions through the destroying of cellular membrane permeability, and has great application potentials in cosmetics area. Our work not only provides a good model for the construction of ultrathin 2D assembly and the investigation of luminescent and bacteriostatic behaviors but also offers significant guidance and reference for the design and construction of other 2D materials.

Key words: Ag （I） nanocluster assembly, self-assemble, ultrathin sheet structure, luminescence, bacteriostatic performance

CLC Number:

TQ658

Lingcan Kong,Yi Han. Synthesis, luminescence, and bacteriostatic performance of Ag（I） nanocluster 2D assembly[J].China Surfactant Detergent & Cosmetics, 2025, 55(10): 1236-1244.

Figures/Tables 8

Fig. 1

Fig. 2

Fig. 3

Tab. 1

Fig. 4

Fig. 5

Fig. 6

Tab. 2

References 27

[1]	Novoselov K S, Geim A K, Morozov S V, et al. Electric field effect in atomically thin carbon films[J]. Science, 2004, 306 (5696) : 666-669. doi: 10.1126/science.1102896 pmid: 15499015
[2]	Zhou Yan, Zhang Guohua, Li Bao, et al. Two-dimensional supramolecular ionic frameworks for precise membrane separation of small nanoparticles[J]. ACS Applied Materials & Interfaces, 2020, 12 (27) : 30761-30769.
[3]	Liu Wenlong, Zou Yi, Lu Changsheng, et al. Self-assembly of a Cu (Ⅱ) -Ba(Ⅱ) 2D coordination polymer containing decanuclear 28-membered metallocycles[J]. Inorganic Chemistry Communications, 2004, 7 (3) : 434-436. doi: 10.1016/j.inoche.2004.01.002
[4]	Niu Zheng, Fang Sheng, Liu Xiao, et al. Coordination-driven polymerization of supramolecular nanocages[J]. Journal of American Chemical Society, 2015, 137 (47) : 14873-14876. doi: 10.1021/jacs.5b10815
[5]	Gao Wenxi, Feng Huijun, Guo Beibei, et al. Coordination-directed construction of molecular links[J]. Chemical Reviews, 2020, 120 (13) : 6288-6325. doi: 10.1021/acs.chemrev.0c00321 pmid: 32558562
[6]	Sun Yan, Chen Chongyi, Liu Jianbo, et al. Recent developments in the construction and applications of platinum-based metallacycles and metallacages via coordination[J]. Chemical Society Reviews, 2020, 49 (12) : 3889-3919. doi: 10.1039/d0cs00038h pmid: 32412574
[7]	Li Xiaozhen, Tian Chongbin, Sun Qingfu. Coordination-directed self-assembly of functional polynuclear lanthanide supramolecular architectures[J]. Chemical Reviews, 2022, 122 (6) : 6374-6458. doi: 10.1021/acs.chemrev.1c00602 pmid: 35133796
[8]	Pan Long, Liu Yitao, Zhong Ming, et al. Coordination-driven hierarchical assembly of hybrid nanostructures based on 2D materials[J]. Small, 2019, 16 (15) : e1902779.
[9]	Wu Zhennan, Liu Jiale, Gao Yang, et al. Assembly-induced enhancement of Cu nanoclusters luminescence with mechanochromic property[J]. Journal of American Chemical Society, 2015, 137 (40) : 12906-12913. doi: 10.1021/jacs.5b06550
[10]	Chi K W, Addicott C, Arif A M, et al. Ambidentate pyridyl-carboxylate ligands in the coordination-driven self-assembly of 2D Pt macrocycles: self-selection for a single isomer[J]. Journal of American Chemical Society, 2004, 126 (50) : 16569-16574. doi: 10.1021/ja045542l
[11]	Li Zhong, Liu Qingda, Wang Xun. Two-dimensional cluster-assembled materials with properties beyond their individualities and bulks[J]. Matter, 2023, 6 (11) : 3747-3762. doi: 10.1016/j.matt.2023.09.004
[12]	Hu Feng, He Ruilin, Guan Zongjie, et al. Disc-like silver nanocluster Ag₉₃ built with bicapped hexagonal prismatic Ag₁₅ and ino decahedral Ag₁₃ units[J]. Angewandte Chemie International Edition, 2023, 62 (29) : e202304134.
[13]	Jin Jin, Wang Weiyin, Liu Yanhua, et al. A precise hexagonal octadecanuclear Ag macrocycle with significant luminescent properties[J]. Chemical Communications, 2011, 47 (26) : 7461-7463. doi: 10.1039/c1cc12142a pmid: 21629898
[14]	Li Xiaomin, Shen Huaibin, Niu Jinzhong, et al. Columnar self-assembly of Cu₂S hexagonal nanoplates induced by Tin(Ⅳ)-X complex as inorganic surface ligand[J]. Journal of American Chemical Society, 2010, 132 (37) : 12778-12779. doi: 10.1021/ja103955s
[15]	Li Chao, Deng Ke, Tang Zhiyong, et al. Twisted metal-amino acid nanobelts: chirality transcription from molecules to frameworks[J]. Journal of American Chemical Society, 2010, 132 (23) : 8202-8209. doi: 10.1021/ja102827f
[16]	Leung B O, Jalilehvand F, Mah V, et al. Silver(I) complex formation with cysteine, penicillamine, and glutathione[J]. Inorganic Chemistry, 2013, 52 (8) : 4593-4602. doi: 10.1021/ic400192c pmid: 23556419
[17]	Jia Xiaofang, Li Jing, Wang Erkang. Supramolecular self-assembly of morphology-dependent luminescent Ag nanoclusters[J]. Chemical Communications, 2014, 50 (67) : 9565-9568. doi: 10.1039/c4cc03913k pmid: 25012693
[18]	Dar W A, Jana A, Sugi K S, et al. Molecular engineering of atomically precise silver clusters into 2D and 3D framework solids[J]. Chemical Materials, 2022, 34 (10) : 4703-4711. doi: 10.1021/acs.chemmater.2c00647
[19]	Hou Yafang, Wang Yuqing, Xu Tianyang, et al. Synergistic multiple bonds induced dynamic self-assembly of silver nanoclusters into lamellar frameworks with tailored luminescence[J]. Chemical Materials, 2022, 34 (17) : 8013-8021. doi: 10.1021/acs.chemmater.2c01939
[20]	Wang Heng, Li Yiming, Li Na, et al. Increasing the size and complexity of discrete 2D metallosupramolecules[J]. Nature Reviews Materials, 2021, 6 (2) : 145-167. doi: 10.1038/s41578-020-00257-w
[21]	Kim J, Jung I, Oh M J, et al. Shape evolution of two-dimensional Au hexagonal nanoplates into pseudo three-dimensional oblate spheroids[J]. Chemical Materials, 2023, 35 (10) : 3976-3984. doi: 10.1021/acs.chemmater.3c00240
[22]	Shao Wei, Liu Xiufeng, Min Huihua, et al. Preparation, characterization, and antibacterial activity of silver nanoparticle-decorated graphene oxide nanocomposite[J]. ACS Applied Materials & Interfaces, 2015, 7 (12) : 6966-6973.
[23]	Mahmoudi M, Serpooshan V. Silver-coated engineered magnetic nanoparticles are promising for the success in the fight against antibacterial resistance threat[J]. ACS Nano, 2012, 6 (3) : 2656-2664. doi: 10.1021/nn300042m pmid: 22397679
[24]	Yan L L, Yam V W. Evolution of polynuclear gold(I) sulfido complexes from clusters and cages to macrocycles[J]. Journal of American Chemical Society, 2024, 146 (1) : 609-616. doi: 10.1021/jacs.3c10381
[25]	Wang H Z, Chan M H, Chen Z, et al. Supramolecular self-assembly of dinuclear alkynylplatinum(Ⅱ) complexes into highly ordered crystalline hexagonal bipyramid superstructures[J]. Chem, 2023, 9 (12) : 1-15. doi: 10.1016/j.chempr.2022.12.012
[26]	Tian Tengfei, Shi Xiaoze, Cheng Liang, et al. Graphene-based nanocomposite as an effective, multifunctional, and recyclable antibacterial agent[J]. ACS Applied Materials & Interfaces, 2014, 6 (11) : 8542-8548.
[27]	Agnihotri S, Mukherji S, Mukherji S. Size-controlled silver nanoparticles synthesized over the range 5-100 nm using the same protocol and their antibacterial efficacy[J]. RSC Advances, 2014, 4 (8) : 3974-3983. doi: 10.1039/C3RA44507K

2θ/ （°）	d_obs/?	d_cal/?	（hkl）	error/%
7.03	12.56	12.60	（002）	0.32
9.73	9.08	9.09	（100）/（010）	0.11
11.85	7.46	7.38	（102）	-1.07
14.10	6.28	6.30	（004）	0.32
17.04	5.20	5.25	（110）	0.96
18.28	4.85	4.85	（111）	0.01
19.53	4.54	4.55	（200）	0.22
25.76	3.45	3.44	（210）	-0.29
29.30	3.04	3.03	（300）	-0.33
30.40	2.94	2.95	（302）	0.34
33.87	2.64	2.62	（220）	-0.76
35.60	2.52	2.52	（310）	0.01
42.97	2.10	2.09	（320）	-0.48

	MIC/ （μg/mL）	IC₅₀/ （μg/mL）	literature
GO-IONP-Ag	32	No data	[26]
Multiple Ag NPs	20~180	No data	[27]
DPA-ACA	10	2.5	This work
