油相组成对W/O型Pickering乳液稳定性和流变性能的影响

doi:10.3969/j.issn.2097-2806.2024.08.001

摘要/Abstract

摘要：

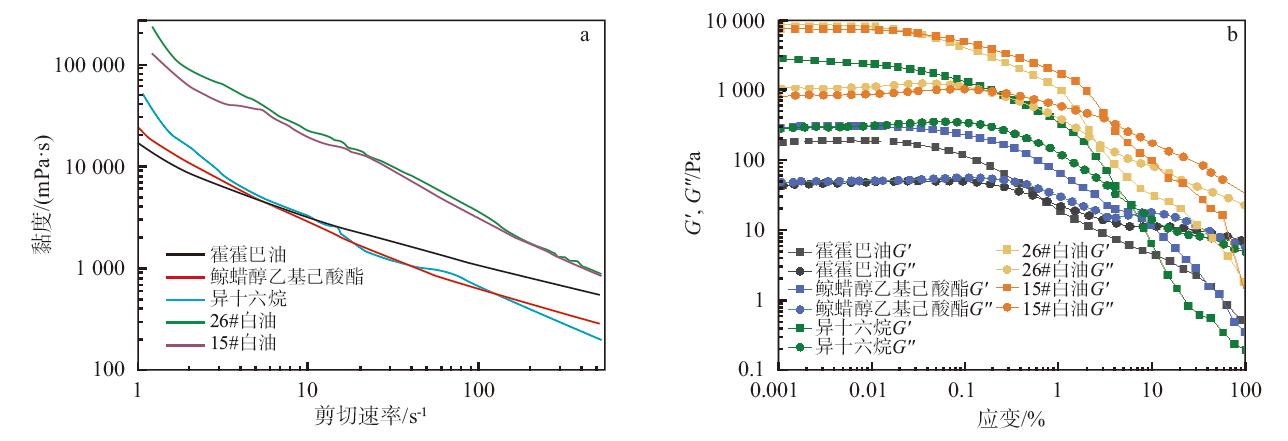

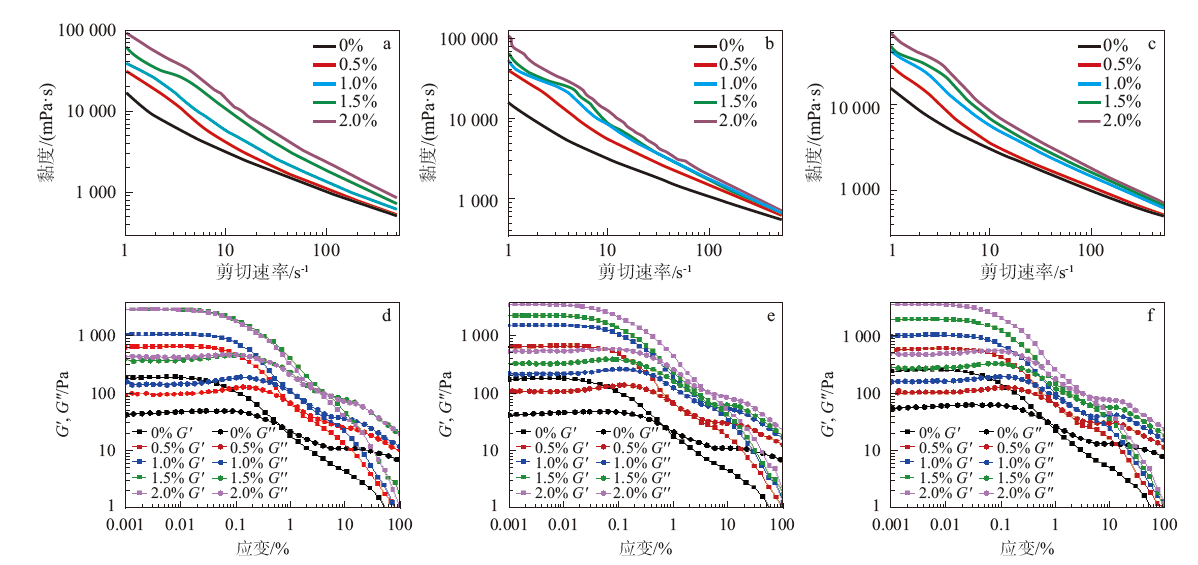

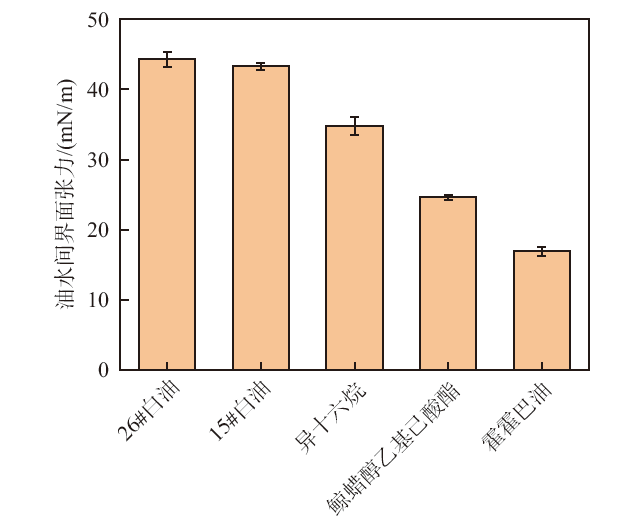

以二甲基甲硅烷基化硅石为乳化剂，采用均质乳化法制备W/O型Pickering乳液，通过偏光显微镜、表面张力仪、接触角测量仪和流变仪研究了油脂的极性、流变改性剂对W/O型Pickering乳液稳定性及流变性能的影响。结果表明，相比于非极性油脂，极性油脂制备出来的W/O型Pickering乳液液滴更小，稳定性能更优，其中霍霍巴油制备的Pickering乳液粒径分布较窄，形状均一，稳定性好；添加流变改性剂后，Pickering乳液的粒径有一定的下降，常温稳定性和低温稳定性均有小幅度提升，对于不同的油脂，与之结构上存在相似性的流变改性剂对粒径的降低及稳定性的提高效果较好。不同油脂制备的W/O型Pickering乳液均为非牛顿流体，随着剪切速率的增大，Pickering乳液的黏度降低，并且所有Pickering乳液的弹性模量（G'）高于黏性模量（G"），均为凝胶乳液，线性黏弹区为0.001%~0.100%，添加流变改性剂后，Pickering乳液的黏度上升，剪切稀化现象基本不变，但线性黏弹区增大，可能与Pickering乳液的粒径和油水界面能的变化有关。

关键词: W/O型Pickering乳液, 乳液液滴粒径, 稳定性, 流变性能

Abstract:

Using dimethylsilylated silica as emulsifier, W/O Pickering emulsions were prepared by homogeneous emulsification. The kinds of oils, rheological modifiers and their effects on the stability and rheological properties of the W/O Pickering emulsions were studied. The results showed that, compared with the nonpolar oil, the W/O Pickering emulsion prepared with polar oil had smaller droplets and better stability, e.g., the emulsion prepared with jojoba oil had narrow particle size distribution, uniform shape and good stability. With the addition of rheological modifier, the particle size of the emulsion decreased to a certain extent, and the stability at room temperature and at low temperature was both slightly increased. For different oils, the rheological modifier which was similar to the oil in molecular structure had better effects in the reduction of particle size and the improvement of stability. All these W/O Pickering emulsions prepared with different oils were non-Newtonian fluids. With the increase of shear rate, the viscosity of the emulsions decreased, and the elastic modulus （G'） of all emulsions was higher than viscous modulus （G"）. All the emulsions were gel emulsions, and the linear viscoelastic region was 0.001%-0.100%. With the addition of rheological modifier, the viscosity of the emulsion increased and the shear thinning phenomenon was basically unchanged, but the linear viscoelastic region was enlarged, which might be related to the change of emulsion particle size and oil-water interfacial energy.

Key words: W/O Pickering emulsion, emulsion droplet size, stability, rheological property

中图分类号:

O648.2

张聚媛,台秀梅,刘慧民,马晓原,高续,罗毅. 油相组成对W/O型Pickering乳液稳定性和流变性能的影响[J]. 日用化学工业（中英文）, 2024, 54(8): 879-886.

Juyuan Zhang,Xiumei Tai,Huimin Liu,Xiaoyuan Ma,Xu Gao,Yi Luo. Effects of oil type on the stability and rheological properties of W/O Pickering emulsions[J]. China Surfactant Detergent & Cosmetics, 2024, 54(8): 879-886.

图/表 9

表1

图1

图2

表2

表3

图3

表4

图4

图5

参考文献 26

[1]	Cater K C, Harbell J W. Prediction of eye irritation potential of liquid and granular laundry detergent formulas using the bovine corneal opacity and permeability (BCOP) assay[J]. Cutaneous and Ocular Toxicology, 2013, 32 (3) : 210-221. doi: 10.3109/15569527.2012.754459 pmid: 23360218
[2]	McClements D J. Advances in fabrication of emulsions with enhanced functionality using structural design principles[J]. Current Opinion in Colloid & Interface Science, 2012, 17 (5) : 235-245.
[3]	Ramsden W. Separation of solids in the surface-layers of solutions and “Suspensions” (observations on surface-membranes, bubbles, emulsions, and mechanical coagulation). Preliminary account[J]. Proceedings of the Royal Society of London, 1903, 72 (479) : 156-164.
[4]	Lam S, Velikov K P, Velev O D. Pickering stabilization of foams and emulsions with particles of biological origin[J]. Current Opinion in Colloid & Interface Science, 2014, 19 (5) : 490-500.
[5]	Binks B P. Particles as surfactants-similarities and differences[J]. Current Opinion in Colloid & Interface Science, 2002, 7 (1/2) : 21-41.
[6]	Yang Y Q, Fang Z W, Chen X, et al. An overview of Pickering emulsions: solid-particle materials, classification, morphology, and applications[J]. Frontiers in Pharmacology, 2017 (8) : 287.
[7]	Atarian M, Rajaei A, Tabatabaei M, et al. Formulation of Pickering sunflower oil-in-water emulsion stabilized by chitosan-stearic acid nanogel and studying its oxidative stability[J]. Carbohydr Polym, 2019, 210: 47-55.
[8]	Song S X, Li Y F, Zhu Q Y, et al. Structure and properties of Pickering emulsions stabilized solely with novel buckwheat protein colloidal particles[J]. Int J Biol Macromol, 2023, 226: 61-71.
[9]	Jiang H, Sheng Y F, Ngai T. Pickering emulsions: versatility of colloidal particles and recent applications[J]. Current Opinion in Colloid & Interface Science, 2020, 49: 1-15.
[10]	Yang L, Cao X Y, Gai A R, et al. Chitosan/guar gum nanoparticles to stabilize Pickering emulsion for astaxanthin encapsulation[J]. Lwt-Food Science and Technology, 2022 (165) : 113727-113737.
[11]	Binks B P, Clint J H. Solid wettability from surface energy components: Relevance to Pickering emulsions[J]. Langmuir, 2002, 18 (4) : 1270-1273.
[12]	Zhu X F, Zheng J, Liu F, et al. The influence of ionic strength on the characteristics of heat-induced soy protein aggregate nanoparticles and the freeze-thaw stability of the resultant Pickering emulsions[J]. Food & Function, 2017, 8 (8) : 2974-2981.
[13]	Dai L, Li Y T, Kong F G, et al. Lignin-based nanoparticles stabilized Pickering emulsion for stability improvement and thermal-controlled release of trans-resveratrol[J]. Acs Sustainable Chemistry & Engineering, 2019, 7 (15) : 13497-13504.
[14]	Tan H, Zhao L, Tian S, et al. Gelatin particle-stabilized high-internal phase emulsions for use in oral delivery systems: protection effect and in vitro digestion study[J]. Journal of Agricultural & Food Chemistry, 2017, 65 (4) : 900.
[15]	Chen X, McClements D J, Wang J, et al. Coencapsulation of (-)-epigallocatechin-3-gallate and quercetin in particle-stabilized W/O/W emulsion gels: controlled release and bioaccessibility[J]. J Agric Food Chem, 2018, 66 (14) : 3691-3699.
[16]	Frelichowska J, Bolzinger M A, Pelletier J, et al. Topical delivery of lipophilic drugs from O/W Pickering emulsions[J]. Int J Pharm, 2009, 371 (1/2) : 56-63.
[17]	Simovic S, Ghouchi-Eskandar N, Prestidge C A. Pickering emulsions for dermal delivery[J]. Journal of Drug Delivery Science and Technology, 2011, 21 (1) : 123-133.
[18]	Zhang R, Yang L, Tu R, et al. Emulsion phase inversion from oil-in-water (1) to water-in-oil to oil-in-water (2) induced by in situ surface activation of CaCO₃ nanoparticles via adsorption of sodium stearate[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2015, 477: 55-62.
[19]	Zhang Q J, Shen X L, Zhang D M, et al. Fabrication and characterization of novel high internal Pickering emulsions stabilized solely by ultrafine pearl powder[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2021 (624) : 126797-126804.
[20]	Wang J, Sun Y J, Yu M Y, et al. Emulsions stabilized by highly hydrophilic TiO₂ nanoparticles via van der Waals attraction[J]. J Colloid Interface Sci, 2021, 589: 378-387.
[21]	Liang R H, Wang L H, Chen J, et al. Alkylated pectin: synthesis, characterization, viscosity and emulsifying properties[J]. Food Hydrocolloids, 2015, 50: 65-73.
[22]	Zhang W, Xu X, Zhao X, et al. Insight into the oil polarity impact on interfacial properties of myofibrillar protein[J]. Food Hydrocolloids, 2022 (128) : 107563-103577.
[23]	Li E X, Feng J X, Jin D Y, et al. Development of a new liquid crystal emulsion and study on the manufacturing characteristics of various factors[J]. Guangdong Chemical Industry, 2023, 50 (12) : 34-40, 66.
[24]	Qiu B Y, Gao Z H. Modern cosmetic science and technology[M]. Guangzhou: China Light Industry Press, 2015: 355-356.
[25]	Fan Y, Chen Q, Jin H, et al. Application research of rheological properties in emulsifying process conditions[J]. China Surfactant Detergent & Cosmetics, 2018, 48 (10) : 577-581.
[26]	Jiang T, Zhang C, Zhang Z W, et al. Study on the relationship between rheological properties and the thickness of O/W creams[J]. China Surfactant Detergent & Cosmetics, 2020, 50 (4) : 227-232.

配方编号	组分名称	w/%
A相	油脂	39
	鲸蜡基聚乙二醇/聚丙二醇-10/1二甲基硅氧烷	0.5
	聚甘油-2二聚羟基硬脂酸酯	0.5
	二甲基甲硅烷基化硅石	3
B相	水	52
B相	甘油	5

油脂种类	油-水-固体三相接触角/（°）
霍霍巴油	129.2±0.5
鲸蜡醇乙基己酸酯	130.1±0.3
异十六烷	142.7±0.4
15#白油	148.9±0.6
26#白油	153.0±0.5

	乳析指数/%
	霍霍巴油	鲸蜡醇乙基己酸酯	异十六烷	15#白油	26#白油
常温	10.8±0.2	13.6±0.1	9.7±0.2	14.8±0.3	14.7±0.2
高温	3.1±0.1	2.8±0.2	7.8±0.2	8.6±0.2	9.3±0.2
低温	14.3±0.3	22.3±0.4	13.7±0.3	3.3±0.1	11.2±0.3
离心	1.8±0.2	9.7±0.2	27.6±0.5	22.6±0.4	21.8±0.4

	乳析指数/%
	辛/癸酸甘油三酯·司拉氯铵水辉石·碳酸丙二醇酯	异十二烷·二硬脂锂蒙脱石· 柠檬酸三乙酯	矿油·二硬脂锂蒙脱石· 碳酸丙二醇酯
霍霍巴油	5.3±0.2	7.8±0.2	8.7±0.3
鲸蜡醇乙基己酸酯	4.1±0.2	10.7±0.3	11.6±0.4
异十六烷	8.1±0.1	4.3±0.1	7.8±0.3
26#白油	12.3±0.3	11.8±0.4	5.7±0.1
15#白油	11.9±0.2	10.2±0.3	4.9±0.2
