金属络合衍生-高效液相色谱法测定洗涤用品中乙二胺四乙酸和氮川三乙酸

doi:10.3969/j.issn.1001-1803.2019.04.013

摘要/Abstract

摘要：

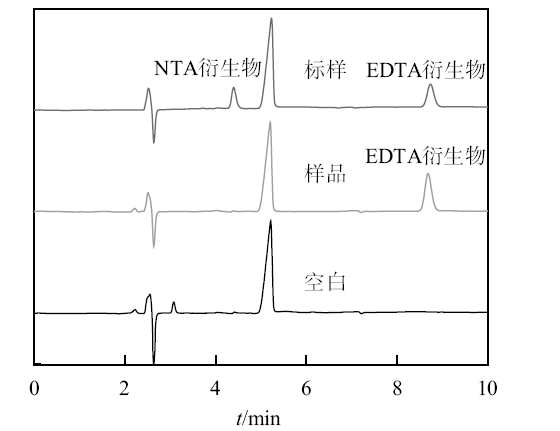

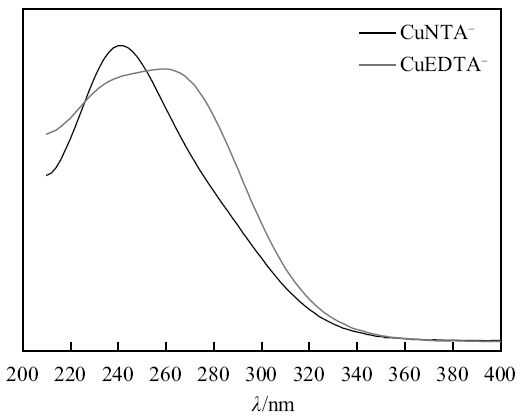

建立了金属络合衍生/高效液相色谱同时测定洗涤用品中乙二胺四乙酸（EDTA）和氮川三乙酸（NTA）的分析方法。样品经水提取,硝酸铜络合衍生,MAX阴离子交换固相萃取柱净化,经X-Bridge C₁₈（4.6 mm×250 mm, 5 μm）色谱柱分离后,用高效液相色谱/二极管阵列检测器检测,以保留时间和紫外吸收光谱定性,外标法定量。结果表明,氮川三乙酸与乙二胺四乙酸在各自范围内呈良好的线性关系,相关系数（R ²）均大于0.999 7,检出限为10~20 mg/kg,定量限为25~50 mg/kg。添加水平为0.5~100.0 mg/L时平均回收率为89.8%~107.8%,相对标准偏差（RSDs,n=6）为1.11%~5.71%,该方法精密度好,准确度高,可满足相关检测需求。

关键词: 洗涤用品, 乙二胺四乙酸, 氮川三乙酸, 金属络合衍生, 高效液相色谱法

Abstract:

A method for the determination of ethylenediamine tetraacetic acid（EDTA）and nitrilotriacetic acid（NTA）in detergent products was established using metal-complexing derivatization and high performance liquid chromatography. The samples were extracted with water, derivatized with Cu（NO₃） ₂, purified by MAX anion-exchange solid-phase extraction, separated on an X-Bridge C_18（4.6 mm×250 mm, 5 μm） column, and detected by HPLC with a diode array detector. The retention time and UV absorption spectra were used for qualitation and the external standard method was used for quantitation. The results show that, under optimized conditions, the calibration curves show good linearity in respective ranges for NTA and EDTA with correlation coefficients（R ²）no less than 0.999 7. The LODs and LOQs are in the ranges of 10-20 mg/kg and 25-50 mg/kg, respectively. The recoveries of EDTA and NTA at the spiked levels of 0.5-100.0 mg/L are in the range of 89.8%-107.8% with the relative standard deviations（RSDs, n=6）are 1.11%-5.71%. With good precision and high accuracy, this method is suitable for the determination of EDTA and NTA in detergent products.

Key words: detergent product, ethylenediamine tetraacetic acid, nitrilotriacetic acid, metal-complexing derivatization, high performance liquid chromatography

中图分类号:

TQ649

夏泽敏,王继才,谭建华,李鑫宇,庞学斌,杨淡梅. 金属络合衍生-高效液相色谱法测定洗涤用品中乙二胺四乙酸和氮川三乙酸[J]. 日用化学工业, 2019, 49(4): 269-274.

XIA Ze-min,WANG Ji-cai,TAN Jian-hua,LI Xin-yu,PANG Xue-bin,YANG Dan-mei. Determination of ethylenediamine tetraacetic acid and nitrilotriacetic acid in detergent products using metal-complexing derivatization and HPLC[J]. China Surfactant Detergent & Cosmetics, 2019, 49(4): 269-274.

图/表 8

图1

图2

图3

图4

图5

图6

表1

表2

参考文献 15

[1]	Guo Xiangyu, Li Haiyu, Bai Hua , et al. Determination of nitrilotriacetic acid salt in detergent products by ion chromatography[J]. Chinese Journal of Analysis Laboratory, 2014,33(8) : 921-923.
[2]	Zhu Yan, Chen Zhiqiang, Yu Jianguo , et al. Determination of ethylenediamine tetra acetic acid and phosphate in detergent products by ion chromatography[J]. Chemical World, 1998,9(17) : 495-498.
[3]	General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China,Standardization Administration of the People’s Republic of China.Surface active agents-detergents-testing methods: GB/T 13173—2008[S]. General Administration of QualitySupervision, Inspection and Quarantine of the People’s Republic of China, Standardization Administration of the People’s Republic of China, 2008.
[4]	General Administration of Quality Supervision,Inspection and Quarantine of the People’s Republic of China,Standardization Administration of the People’s Republic of China.Food additive - sodium iron (Ⅲ) ethylenediaminetetraacetate, trihydrate: GB 22557—2008[S]. GeneralAdministration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China, Standardization Administration of the People’s Republic of China, 2008.
[5]	Ma Chiyuan, Guo Ping, Chen Lin , et al. Determination of ethylenediamine tetraacetic acid disodium salt content in canned pickled vegetables by high performance liguid chromatography[J]. Food Science, 2016,37(16) : 258-262.
[6]	Wei Feng, Huo Junsheng, Yu Bo , et al. Determination of nitrilotriacetic acid in sodium iron (Ⅲ) ethylenediamine teraaceate for nutritional fortifier[J]. Science and Technology of Food Industry, 2009,30(4) : 321-323.
[7]	Wang Xinmei, Yang Wenting, Wang Ke , et al. Determination of EDTA in Chinese medicine injection by high performance liquid chromatography[J]. Chinese Journal of Health Laboratory Technology, 2012,22(5) : 1000-1002.
[8]	Kemmei T, Kodama S Yamamoto A, , et al. Determination of sequestering agents in cosmetics and synthetic detergents by high-performance liquid chromatography with ultraviolet detection[J]. Journal of Chromatography A, 2007,1171:63-68. doi: 10.1016/j.chroma.2007.09.037
[9]	Kemmei T, Kodama S, Muramoto T , et al. Study of solid-phase extraction for the determination of sequestering agentsin river water by high-performance liquid chromatography[J]. Journal of Chromatography A, 2009,1216:1109-1114. doi: 10.1016/j.chroma.2008.12.055
[10]	Ren Yuzhuo, Du Yan, Wang Zhao , et al. Determination of residual EDTA disodium salt content in live attenuated varicella vaccine by high performance liquid chromatography[J]. Chinese Journal of Biologicals, 2016,29(9) : 993-996.
[11]	Liu Beilei, Jia Haitao, Yao Chunyi . Determination of NTA in food additive disodium edentate by ion chromatography[J]. Chinese Journal of Analysis Laboratory, 2016,35(12) : 1451-1453.
[12]	Wei Dongxu, Han Guangyuan, Sun Ying , et al. HPLC-MS/MS determination of Na₂-EDTA in food[J]. Physical Testing and Chemical Analysis (Part B: Chemical Analysis) , 2014,50(6) : 698-701.
[13]	General Administration of Quality Supervision,Inspection and Quarantine of the People’s Republic of China.Determination of ethylenediamine tetraacetic acid disodium in foodstuffs for export: SN/T 3855—2014[S]. Beijing: General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China, 2014.
[14]	Wei Dongxu, Hu Kun, Sun Ying , et al. Determination of EDTA-2Na in food by high performance liquid chromatography[J]. Journal of inspection and quarantime, 2013,23(6) : 50-53.
[15]	National Health and Family Planning Commission of the People’s Republic of China,China Food and Drug Administration.National food safety standard. Determination of ethylenediamine tetraacetate in food: GB 5009.278—2016[S]. National Health and Family Planning Commission of thePeople’s Republic of China, China Food and Drug Administration, 2016.

化合物	添加水平/（mg·L^-1）	回收率/%		RSD/%
化合物	添加水平/（mg·L^-1）	洗洁精	洗衣粉	洗洁精	洗衣粉
乙二胺四乙酸二钠	1.0	107.8	105.6	5.71	5.03
	10.0	100.6	102.7	2.11	1.91
	100.0	97.8	98.8	1.12	2.12
氮川三乙酸三钠	0.5	91.1	89.8	4.03	2.76
	5.0	99.6	98.4	2.04	1.11
	50.0	97.7	99.7	1.34	1.92
