三嗪基Gemini表面活性剂与2-巯基乙醇在3.5% NaCl中对碳钢的缓蚀协同效应研究

doi:10.3969/j.issn.2097-2806.2025.03.004

摘要/Abstract

摘要：

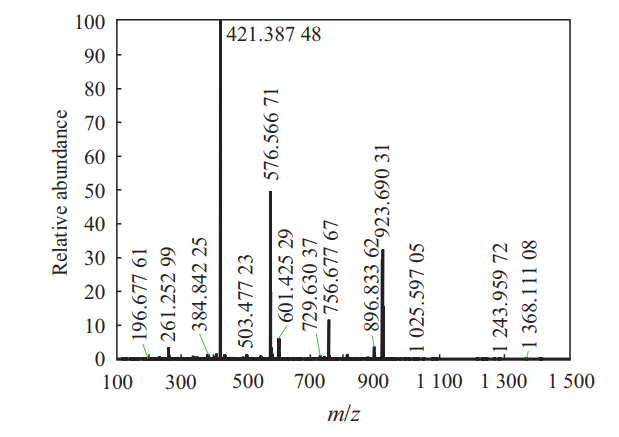

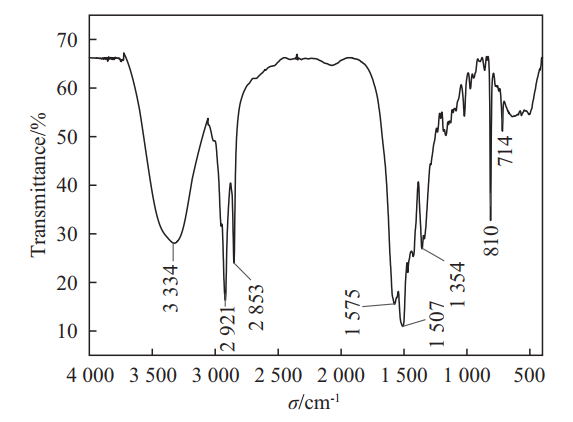

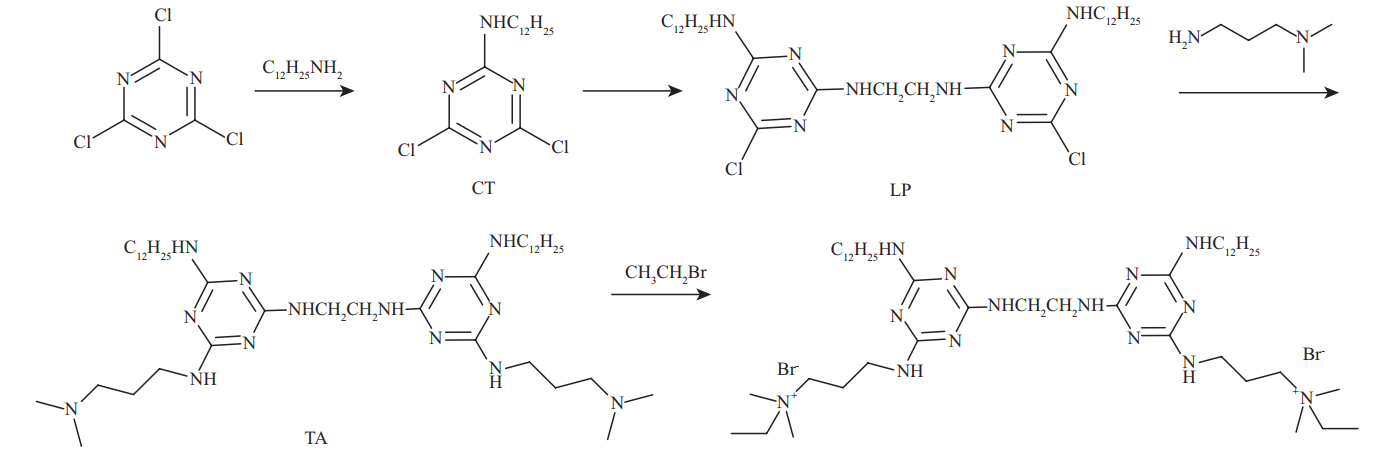

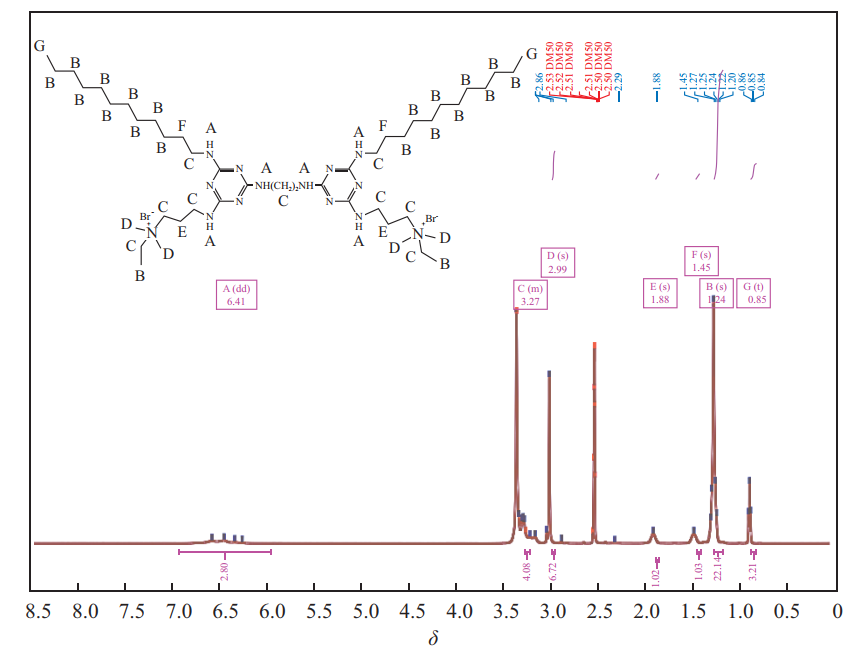

以三聚氯氰、十二胺、乙二胺、N, N-二甲基-1, 3-丙二胺、溴乙烷为原料，合成了三嗪基Gemini表面活性剂（C₁₂-2-C₁₂），并通过傅里叶变换红外光谱、核磁共振氢谱、高分辨质谱对其结构进行了表征。通过静态失重测试、电化学阻抗、动电位极化研究了在60 ℃，3.5% NaCl溶液中C₁₂-2-C₁₂与2-巯基乙醇（TZ）对碳钢缓蚀的协同作用。结果表明，当n（C₁₂-2-C₁₂）∶n（TZ）=7∶3时，复配后缓蚀剂的缓蚀率可达95.47%，缓蚀协同参数为1.52。动电位极化测试结果表明该复配缓蚀剂为混合型缓蚀剂。扫描电子显微镜与X射线光电子能谱仪结果表明，C₁₂-2-C₁₂与TZ共同吸附在碳钢表面，增强了吸附膜的致密性。同时利用分子动力学模拟对其缓蚀机理进行具体阐释。

关键词: 2-巯基乙醇, 三嗪基Gemini表面活性剂, 协同缓蚀, NaCl

Abstract:

The triazine-based Gemini surfactant C₁₂-2-C₁₂ was synthesized with cyanuric chloride, dodecylamine, ethylenediamine, N,N-dimethyl-1, 3-propanediamine and ethyl bromide as raw materials. The structure of the product was characterized by Fourier transform infrared spectroscopy, ¹H NMR and high-resolution mass spectrometry. The synergistic effect of C₁₂-2-C₁₂and 2-mercaptoethanol （TZ） on corrosion inhibition of carbon steel in 3.5% NaCl solution at 60 ℃ was investigated by static weight loss test, electrochemical impedance spectroscopy （EIS）, and potentiodynamic polarization test. The results showed that, the corrosion inhibition rate could reach 95.47% when n（C₁₂-2-C₁₂） ∶n（TZ） = 7∶3, and the synergistic parameter of corrosion inhibition was 1.52. The potentiodynamic polarization curves indicated that the mixed corrosion inhibitors in 3.5% NaCl solution behaved like a hybrid corrosion inhibitor. The results of scanning electron microscopy and X-ray photoelectron spectroscopy showed that the presence of TZ could complement the adsorption sites of C₁₂-2-C₁₂ on the surface of carbon steel and enhance the denseness of the adsorption film, thus enhancing the corrosion inhibition performance. Molecular dynamics simulations were used to specifically elucidate the corrosion inhibition mechanism, which proved that there was good synergistic corrosion inhibition effect. This work would be expected to improve the ability of corrosion inhibitors to act in harsh environments and prolong the protective period.

Key words: 2-mercaptoethanol, triazine-based Gemini surfactant, synergistic corrosion inhibition, NaCl

中图分类号:

TQ423

梁鹏慧, 原梦颖, 阮义蕾, 高国芳, 胡志勇, 朱海林. 三嗪基Gemini表面活性剂与2-巯基乙醇在3.5% NaCl中对碳钢的缓蚀协同效应研究[J]. 日用化学工业（中英文）, 2025, 55(3): 295-304.

Penghui Liang, Mengying Yuan, Yilei Ruan, Guofang Gao, Zhiyong Hu, Hailin Zhu. Synergistic effect of triazine-based Gemini surfactant and 2-mercaptoethanol on corrosion inhibition of carbon steel in 3.5%NaCl solution[J]. China Surfactant Detergent & Cosmetics, 2025, 55(3): 295-304.

图/表 17

图1

图2

图3

图4

表1

图5

表2

图6

图7

表3

图8

表4

图9

表5

图10

表6

图11

参考文献 30

[1]	Li X H, Deng S D, Fu H, et al. Inhibition effect of 6-benzylaminopurine on the corrosion of cold rolled steel in H₂SO₄ solution[J]. Corrosion Science, 2009, 51 (3): 620-634.
[2]	Alnajjar A O, Abd El-Lateef H M. A novel approach to investigate the synergistic inhibition effect of nickel phosphate nanoparticles with quaternary ammonium surfactant on the Q235-mild steel corrosion: Surface morphology, electrochemical-computational modeling outlines[J]. Journal of Molecular Liquids, 2021, 337: 116125-116141.
[3]	Shi R L, Zhang J, Shi S H. Synergistic inhibition effect of polyacrylamide and tetradecylpyridinium bromide on corrosion behavior of carbon steel rebar in simulated cement-mortar pore solution[J]. International Journal of Electrochemical Science, 2021, 16 (6): 210626-210634.
[4]	Mao T Y, Huang H M, Liu D T, et al. Novel cationic Gemini ester surfactant as an efficient and eco-friendly corrosion inhibitor for carbon steel in HCl solution[J]. Journal of Molecular Liquids, 2021, 339: 117174-117184.
[5]	Zhang W P, Zhang Z, Li W W, et al. Synergistic effect of phytic acid and benzyltrimethyl ammonium bromide on corrosion inhibition of carbon steel in 0.5 M HCl[J]. International Journal of Electrochemical Science, 2019, 14 (8): 7348-7362.
[6]	王俊霞, 刘建华, 陆小猛, 等. 含噻二唑季铵盐表面活性剂对Q235钢的缓蚀性能[J]. 日用化学工业, 2022, 52 (8): 797-804.
[7]	Li Y Z, Xu N, Guo X P, et al. Inhibition effect of imidazoline inhibitor on the crevice corrosion of N80 carbon steel in the CO₂-saturated NaCl solution containing acetic acid[J]. Corrosion Science, 2017, 126: 127-141.
[8]	Aslam R, Mobin M, Aslam J, et al. Sugar based N, N′-didodecyl-N, N′ digluconamideethylenediamine gemini surfactant as corrosion inhibitor for mild steel in 3.5% NaCl solution-effect of synergistic KI additive[J]. Scientific Reports, 2018, 8 (1): 3690-3709. doi: 10.1038/s41598-018-21175-6 pmid: 29487360
[9]	Jin X H, Wang J B, Zheng S Y, et al. The study of surface activity and anti-corrosion of novel surfactants for carbon steel in 1 M HCl[J]. Journal of Molecular Liquids, 2022, 353: 118747-11858.
[10]	Ansari K R, Quraishi M A, Singh A. Pyridine derivatives as corrosion inhibitors for N80 steel in 15% HCl: Electrochemical, surface and quantum chemical studies[J]. Measurement, 2015, 76: 136-147.
[11]	Hu W, Tang J, Xie J. Corrosion inhibition of N80 Steel with the presence of asymmetric Gemini in a CO₂-saturated brine solution[J]. International Journal of Electrochemical Science, 2017, 12 (11): 11017-11029.
[12]	Fekry A M, Mohamed R R. Acetyl thiourea chitosan as an eco-friendly inhibitor for mild steel in sulphuric acid medium[J]. Electrochimica Acta, 2010, 55 (6): 1933-1939.
[13]	朱元强, 景亚, 刘裕双, 等. 直链型巯基醇类化合物对 Q235 钢的缓蚀性能[J]. 材料保护, 2017, 50 (11): 18-22.
[14]	胡语芯. 含氮杂环化合物与含硫化合物缓蚀协同效应的研究[D]. 成都: 西南石油大学, 2019.
[15]	Zhu Y Q, Qu S D, Shen Y, et al. Investigation on the synergistic effects and mechanism of oleic imidazoline and mercaptoethanol corrosion inhibitors by experiment and molecular dynamic simulation[J]. Journal of Molecular Structure, 2023, 1274: 134512-134522.
[16]	原梦颖, 王德华, 楠惠开, 等. 三嗪基Gemini表面活性剂在0.5 mol/LH₂SO₄中对45^#碳钢的缓蚀性能研究[J]. 日用化学工业, 2024, 54 (10): 1145-1154.
[17]	Mobin M, Aslam R, Aslam J. Synergistic effect of cationic gemini surfactants and butanol on the corrosion inhibition performance of mild steel in acid solution[J]. Materials Chemistry and Physics, 2019, 223: 623-633. doi: 10.1016/j.matchemphys.2018.11.032
[18]	Lu Y, Zhang C, Wang W, et al. Study of the synergistic effect between corrosion inhibitors by using fractional free volume[J]. Chemical Research in Chinese Universities, 2019, 35 (6): 1046-1051.
[19]	吕正平, 李缘, 刘晓航, 等. 酸性氯化钠溶液中硝酸钠和硫脲对7075铝合金缝隙腐蚀的协同缓蚀作用[J]. 中国腐蚀与防护学报, 2023, 43 (6): 1367-1374. doi: 10.11902/1005.4537.2022.365
[20]	王鹏杰, 宋昱灏, 樊林, 等. 新型高效咪唑希夫碱缓蚀剂对Q235钢在1 mol/L HCl溶液中的缓蚀作用[J]. 中国腐蚀与防护学报, 2024, 44 (1): 59-70.
[21]	王业飞, 王婧, 杨震, 等. 新型高温酸化缓蚀剂的制备及性能评价[J]. 化工进展, 2024 (10): 5712-5722. doi: 10.16085/j.issn.1000-6613.2023-1615
[22]	胡闪, 王任芳, 杨婷, 等. 2种新型含硫曼尼希碱在盐酸中对N80钢的缓蚀性能研究[J]. 材料保护, 2021, 54 (7): 79-84.
[23]	Deyab M A. Application of nonionic surfactant as a corrosion inhibitor for zinc in alkaline battery solution[J]. Journal of Power Sources, 2015, 292: 66-71.
[24]	Zhu H L, Li X F, Lu X M, et al. Intra-/inter-molecular synergistic inhibition effect of sulfonate surfactant and 2-benzothiazolethiol on carbon steel corrosion in 3.5% NaCl solution[J]. Corrosion Science, 2021, 182: 109291.
[25]	Du C L, Wang X M, Chen Y Y, et al. Synergistic effect between two quaternary ammonium salts and thiourea as corrosion inhibitors for X70 steels in CO₂ saturated 3.5% NaCl solution[J]. International Journal of Electrochemical Science, 2024, 19 (1): 100443.
[26]	Han P, Chen C F, Li W H, et al. Synergistic effect of mixing cationic and nonionic surfactants on corrosion inhibition of mild steel in HCl: experimental and theoretical investigations[J]. Journal of Colloid and Interface Science, 2018, 516: 398-406. doi: S0021-9797(18)30106-1 pmid: 29408129
[27]	Zhang W W, Li C Y, Wang W J, et al. Laminarin and sodium molybdate as efficient sustainable inhibitor for Q235 steel in sodium chloride solution[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2022, 637: 128199-128207.
[28]	Yumnam G D, Sayani A, Ajmal K P, et al. Impacts of pyridinium gemini surfactants on corrosion inhibition of carbon steel[J]. Surfaces and Interfaces, 2024: 103796-103807.
[29]	Ren S M, Cui M J, Chen X Y, et al. Comparative study on corrosion inhibition of N doped and N, S codoped carbon dots for carbon steel in strong acidic solution[J]. Journal of Colloid and Interface Science, 2022, 628: 384-397.
[30]	Wang P J, Fan L, Song Y H, et al. Synergistic effect of new imidazoline derivative and 2‐aminopyridine as corrosion inhibitors for Q235: Experimental and theoretical study[J]. Surface and Interface Analysis, 2024, 56 (4): 200-211.

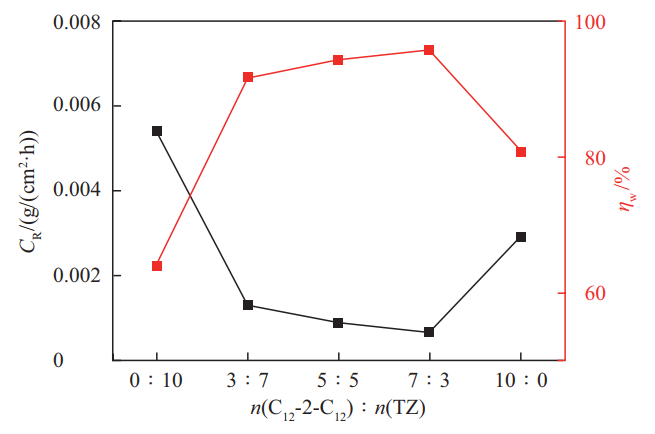

Inhibitor	C_R/（g/（cm²·h））	θ	η/%	S
3.5% NaCl	0.015 1
n（C₁₂-2-C₁₂）∶n（TZ）=0∶10	0.005 4	0.64	64.04
n（C₁₂-2-C₁₂）∶n（TZ）=3∶7	0.001 3	0.91	91.45	0.81
n（C₁₂-2-C₁₂）∶n（TZ）=5∶5	0.000 9	0.94	94.16	1.18
n（C₁₂-2-C₁₂）∶n（TZ）=7∶3	0.000 7	0.95	95.47	1.52
n（C₁₂-2-C₁₂）∶n（TZ）=10∶0	0.002 9	0.81	80.79

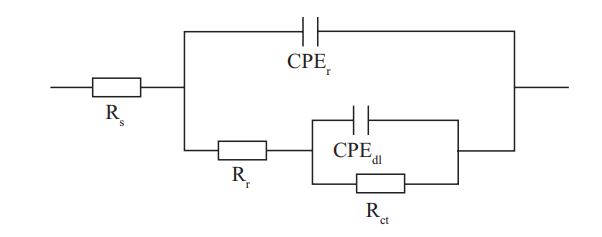

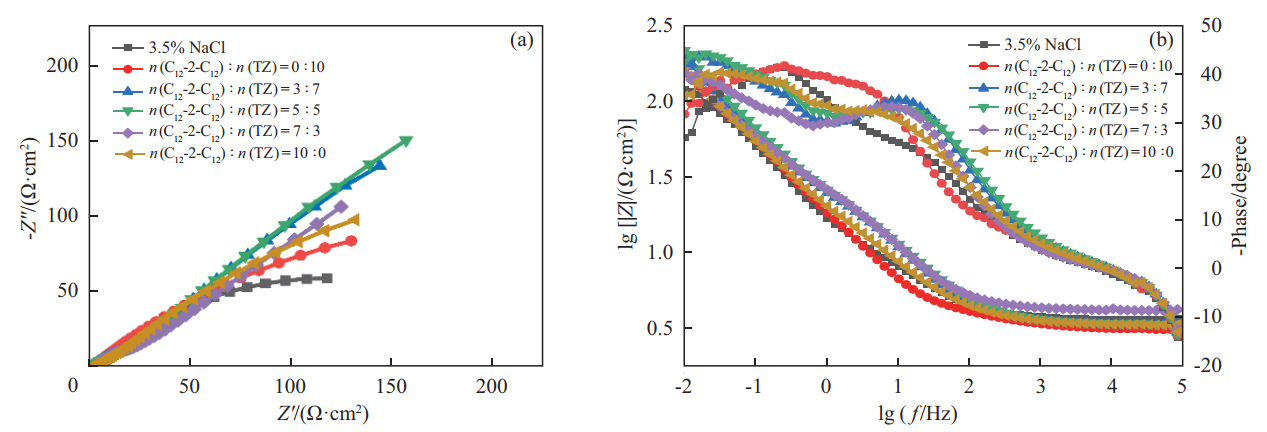

Inhibitor	R_s/ （Ω·cm²）	C_f/ （mF/cm²）	n₁	R_f/ （Ω·cm²）	C_dl/ （mF/cm²）	n₂	R_ct/ （Ω·cm²）	R_p/ （Ω·cm²）	η_eis/%	S
3.5% NaCl	3.64	9.20	0.76	7.10	65.48	0.60	189.65	196.75
n（C₁₂-2-C₁₂）∶n（TZ）=0∶10	3.07	77.57	0.53	16.25	46.65	1.00	436.10	452.35	56.51
n（C₁₂-2-C₁₂）∶n（TZ）=3∶7	3.38	10.09	0.71	23.46	49.45	0.60	1 082.00	1 105.46	82.20	0.93
n（C₁₂-2-C₁₂）∶n（TZ）=5∶5	3.37	9.53	0.70	20.30	33.49	0.56	1 853.00	1 873.30	89.50	1.57
n（C₁₂-2-C₁₂）∶n（TZ）=7∶3	4.17	9.05	0.74	22.37	25.35	0.52	2 101.00	2 123.37	90.73	1.78
n（C₁₂-2-C₁₂）∶n（TZ）=10∶0	3.34	20.54	0.66	19.81	63.85	0.57	499.10	518.91	62.08

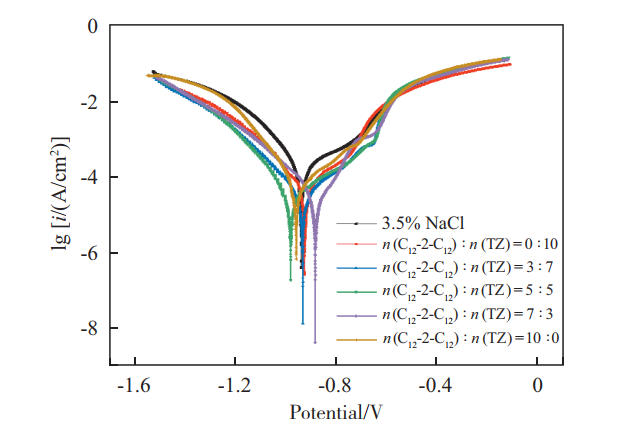

Inhibitor	E_corr/V	I_corr/（μA/cm²）	b_a/（V/dec）	b_c/（V/dec）	η_pp/%	S
3.5%NaCl	-0.937	272.86	497.75	-159.88
n（C₁₂-2-C₁₂）∶n（TZ）=0∶10	-0.923	101.50	256.49	-113.14	62.80
n（C₁₂-2-C₁₂）∶n（TZ）=3∶7	-0.930	43.40	252.24	-172.94	84.09	0.86
n（C₁₂-2-C₁₂）∶n（TZ）=5∶5	-0.978	34.45	228.12	-162.85	87.37	1.08
n（C₁₂-2-C₁₂）∶n（TZ）=7∶3	-0.881	26.20	120.13	-141.86	90.40	1.42
n（C₁₂-2-C₁₂）∶n（TZ）=10∶0	-0.956	100.18	245.40	-124.24	63.29

	Fe	O	C	N	S
n（C₁₂-2-C₁₂）∶n（TZ）=0∶10	85.56±0.13	8.73±0.11	5.57±0.12		0.14±0.05
n（C₁₂-2-C₁₂）∶n（TZ）=7∶3	89.75±0.14	3.37±0.05	6.24±0.12	0.45±0.08	0.19±0.02
n（C₁₂-2-C₁₂）∶n（TZ）=10∶0	84.41±0.14	8.02±0.05	7.22±0.12	0.35±0.08

	n（C₁₂-2-C₁₂）∶n（TZ）=0∶10		n（C₁₂-2-C₁₂）∶n（TZ）=7∶3		n（C₁₂-2-C₁₂）∶n（TZ）=10∶0

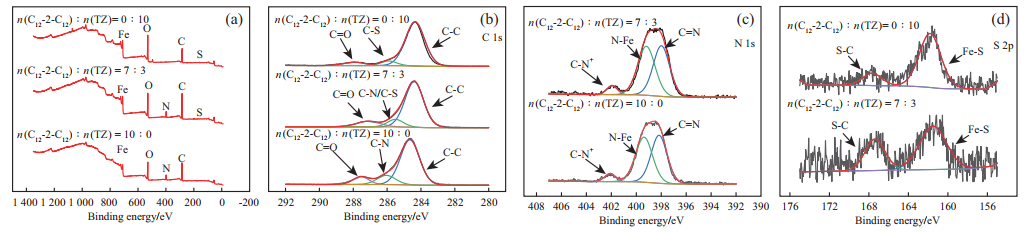

Elements	Assignment	Position/eV	Assignment	Position/eV	Assignment	Position/eV
C 1s	C-C	284.35	C-C	284.40	C-C	284.65
	C-S	285.90	C-S/C-N	285.51	C-N	286.04
	C=O	287.95	C=O	287.10	C=O	287.55
N 1s			C=N	398.03	C=N	398.17
			N-Fe	399.21	N-Fe	399.38
			C-N⁺	401.83	C-N⁺	402.10
S 2p	Fe-S	161.81	Fe-S	161.50
S 2p	S-C	167.66	S-C	167.38
