日用化学工业 ›› 2019, Vol. 49 ›› Issue (12): 811-816.doi: 10.3969/j.issn.1001-1803.2019.12.008

• 开发与应用 • 上一篇    下一篇

界面聚合法制备聚脲蜂蜡相变微胶囊

倪卓,陈书田,朱进普

  1. 深圳大学 化学与环境工程学院,广东 深圳 518000
  • 收稿日期:2019-04-22 修回日期:2019-06-21 出版日期:2019-12-22 发布日期:2019-12-24
  • 作者简介:倪 卓（1963-）,男,吉林通化人,教授、博士生导师,E-mail: zhuoni@szu.edu.cn。
  • 基金资助:
    深圳市科学技术研究与发展基金项目资助(JCYJ20170302141509023);深圳市科学技术研究与发展基金项目资助(GRCK2017082111284729)

Microencapsulation of beeswax as a phase change material in polyurea by interfacial polymerization

NI Zhuo,CHEN Shu-tian,ZHU Jin-pu

  1. College of Chemistry and Environmental, Shenzhen University, Shenzhen, Guangdong 518000, China
  • Received:2019-04-22 Revised:2019-06-21 Online:2019-12-22 Published:2019-12-24

RichHTML

7

PDF (PC)

292

赞

摘要：

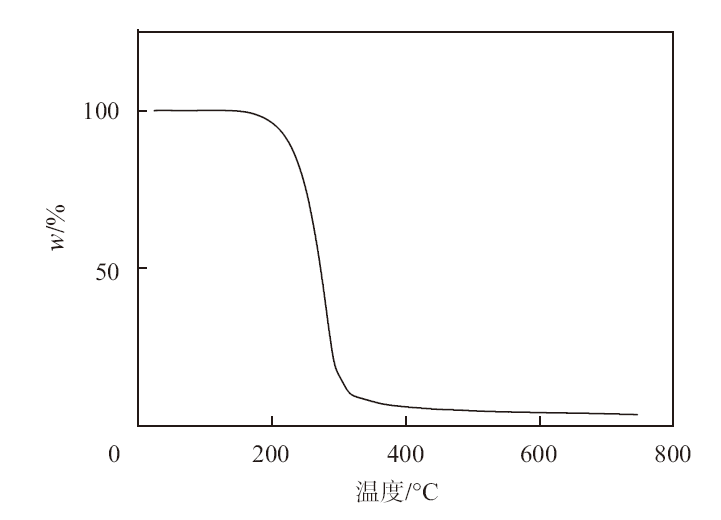

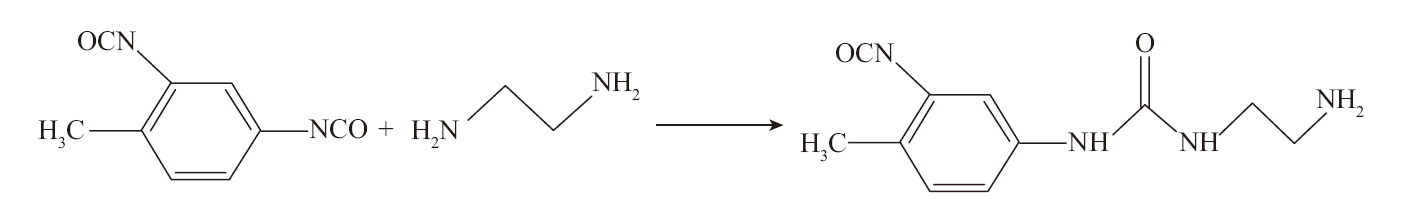

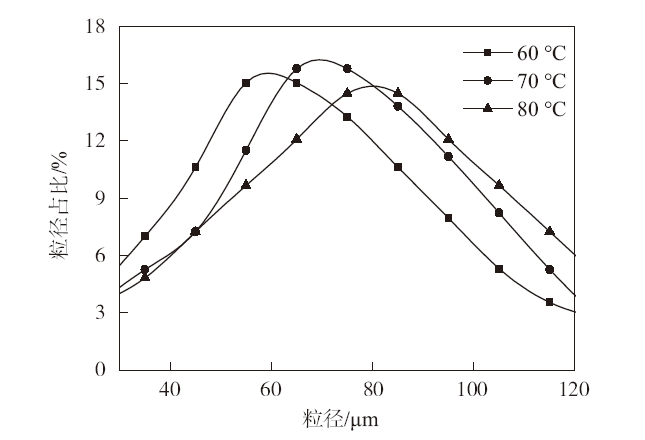

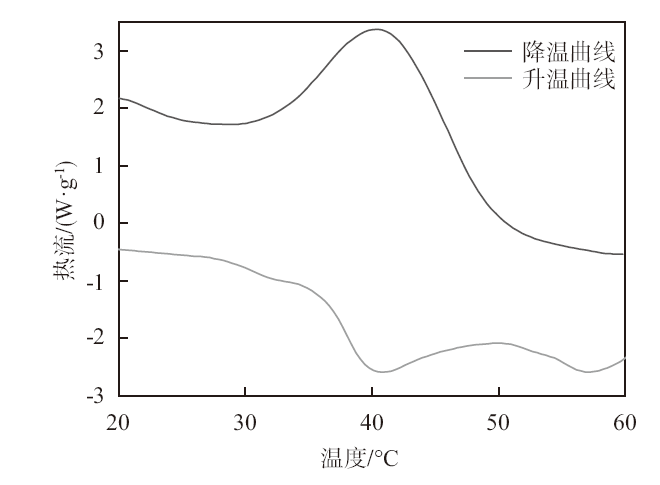

以蜂蜡为微胶囊芯材,以甲苯-2,4-二异氰酸酯（TDI）和乙二胺（EDA）为单体,以辛基酚聚氧乙烯醚（OP-10）为乳化剂,采用界面聚合法制备聚脲蜂蜡相变微胶囊。探讨乳化剂用量、单体摩尔比和反应温度等因素对聚脲蜂蜡相变微胶囊的影响,并表征其包覆效果。结果表明,在乳化剂质量分数为2.40%,n（TDI）∶n（EDA）=1.2∶1.0,反应温度为70 ℃的条件下制备的聚脲蜂蜡相变微胶囊的平均粒径为70.3 μm,耐热温度为210 ℃,相变温度为41 ℃,相变潜热为59.55 J/g。

关键词: 蜂蜡, 聚脲, 相变微胶囊, 界面聚合法

Abstract:

Polyurea microcapsules containing beeswax as the core material were prepared by interfacial polymerization. Toluene diisocyanate （TDI） and ethylene diamine （EDA） were used as monomers and octylphenol polyoxyethylene （10） ether （OP-10） was used as emulsifier. The effects of emulsifier dosage, molar ratio of monomers and reaction temperature on polyurea/beeswax phase change microcapsules were studied. The effectiveness of microencapsulation was also analyzed. The results showed that when the emulsifier mass fraction is 2.40%, n（TDI）∶n（EDA） is 1.2∶1.0 and the reaction temperature is 70 ℃, the average particle size of polyurea/beeswax microcapsules prepared under such condition is 70.3 μm, while the heat-resistance temperature, phase change temperature and latent heat of phase change are 210 ℃, 41 ℃, and 59.55 J/g, respectively.

Key words: beeswax, polyurea, phase change microcapsule, interfacial polymerization

中图分类号:

  • TB33
