溶胶凝胶法制备布洛芬表面分子印迹聚合物及其性能研究

doi:10.3969/j.issn.1001-1803.2022.05.005

日用化学工业 ›› 2022, Vol. 52 ›› Issue (5): 493-498.doi: 10.3969/j.issn.1001-1803.2022.05.005

溶胶凝胶法制备布洛芬表面分子印迹聚合物及其性能研究

张莉¹,汪鑫¹,范维刚^1,^2,^*(),粟智^1,^2,^3,^*()

1.新疆师范大学化学化工学院,新疆乌鲁木齐 830054
2.新疆储能与光电催化材料重点实验室,新疆乌鲁木齐 830054
3.新疆理工学院,新疆阿克苏 843100

收稿日期:2021-07-19 修回日期:2022-04-28 出版日期:2022-05-22 发布日期:2022-05-24
通讯作者: 范维刚,粟智
基金资助:
新疆储能与光电催化材料重点实验室开放课题(XJCNGDCH-20201)

Preparation of surface molecularly imprinted polymers with ibuprofen template by sol-gel method and their properties

Zhang Li¹,Wang Xin¹,Fan Weigang^1,^2,^*(),Su Zhi^1,^2,^3,^*()

1. College of Chemistry and Chemical Engineering, Xinjiang Normal University, Urumqi, Xinjiang 830054, China
2. Xinjiang Key Laboratory of Energy Storage and Photoelectric Materials, Urumqi, Xinjiang 830054, China
3. Xinjiang Institute of Technology, Akesu, Xinjiang 843100, China

Received:2021-07-19 Revised:2022-04-28 Online:2022-05-22 Published:2022-05-24
Contact: Weigang Fan,Zhi Su

摘要/Abstract

摘要：

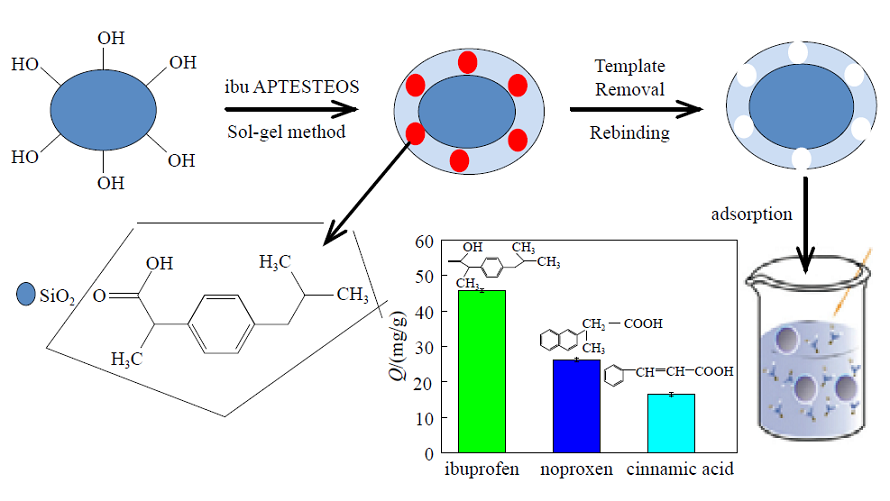

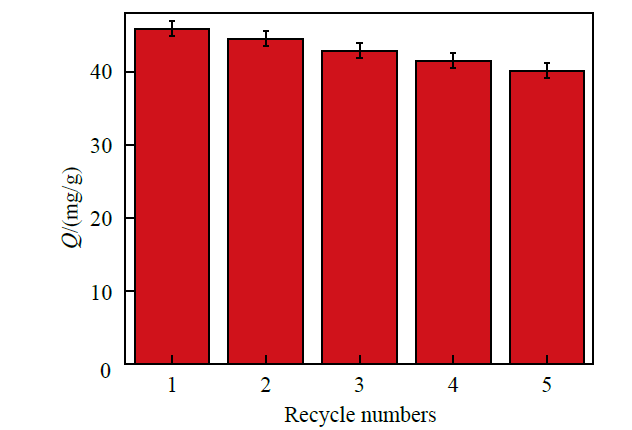

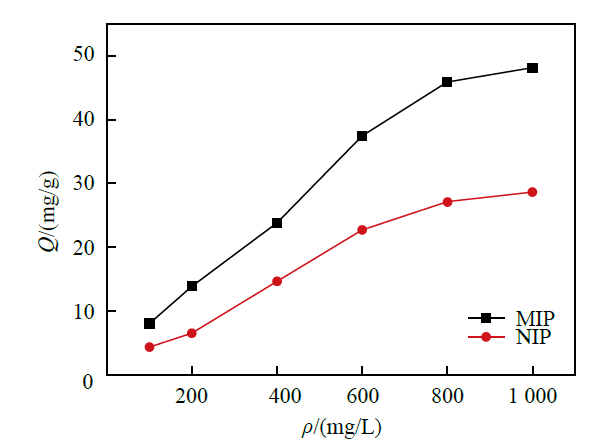

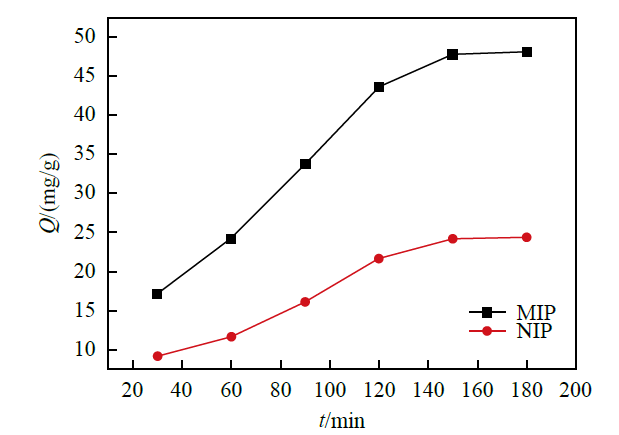

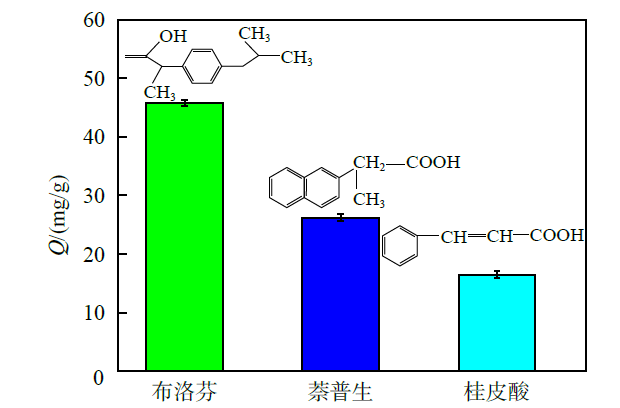

采用溶胶凝胶表面分子印迹技术,以纳米级二氧化硅为载体,以布洛芬为模板分子,3-氨丙基三乙氧基硅烷（APTES）为功能单体,正硅酸乙酯（TEOS）为交联剂,合成了布洛芬分子印迹聚合物（MIPs）。使用扫描电镜（SEM）对合成的MIPs进行了形貌表征,通过静态吸附实验、动态吸附实验、选择性实验以及再生利用实验评价了MIPs对布洛芬的吸附性能。结果表明,MIPs对布洛芬可在150 min时达到吸附平衡,饱和吸附容量可达45.9 mg/g,印迹因子为1.7,与非分子印迹聚合物相比,MIPs对布洛芬具有特异性识别性能。此外,MIPs经过5次循环使用后,对布洛芬的吸附容量仍保持在初始的87.6%以上,有较好的重复利用性能,能够作为一种良好的对布洛芬具有高选择性和高吸附容量的新型吸附功能材料。

关键词: 分子印迹聚合物, 布洛芬, 溶胶凝胶法

Abstract:

Using ibuprofen as template molecule, 3-aminopropyl triethoxysilane （APTES） as functional monomer and ethyl orthosilicate （TEOS） as crosslinking agent, molecularly imprinted polymers （MIPs） were synthesized by sol-gel method and surface imprinting technology. The morphology of the synthesized MIPs was characterized by scanning electron microscopy （SEM）. The adsorption behavior of ibuprofen on MIPs was evaluated by static and dynamic adsorption experiments, and the high selectivity of MIPs to ibuprofen was evaluated by selective experiment. The results showed that MIPs could achieve adsorption equilibrium with ibuprofen at 150 min, and the imprinted factor was 1.7, and the saturated adsorption capacity was 45.9 mg/g. Compared with non-imprinted polymers, MIPs had specific recognition and high selectivity for ibuprofen. In addition, the adsorption capacity of ibuprofen molecularly imprinted polymer prepared by sol-gel method was more than 87.6% after 5 cycles, indicative of good reusability. Therefore, the synthesized molecularly imprinted polymers have a good application prospect for the recognition and adsorption of ibuprofen.

Key words: molecularly imprinted polymer, ibuprofen, sol-gel method

中图分类号:

O631.3

张莉,汪鑫,范维刚,粟智. 溶胶凝胶法制备布洛芬表面分子印迹聚合物及其性能研究[J]. 日用化学工业, 2022, 52(5): 493-498.

Zhang Li,Wang Xin,Fan Weigang,Su Zhi. Preparation of surface molecularly imprinted polymers with ibuprofen template by sol-gel method and their properties[J]. China Surfactant Detergent & Cosmetics, 2022, 52(5): 493-498.

图/表 6

图1

图2

图3

图4

图5

图6

参考文献 22

[1]	Liu zhong, Song Hongping, Xu Jun, et al. Determination of content and related substances in ibuprofen injection by high performance liquid chromatography[J]. Journal of Hospital Pharmacy, 2009, 29 (10): 856-858.
[2]	Zhang Yitu, Chen Yao, Shi Zhirong, et al. Study on pharmacokinetics and biovalence of ibuprofen sustained release capsules with single dose and multiple dose[J]. Chinese Journal of Clinical Pharmacology and Therapeutics, 2014, 19 (3): 297-301.
[3]	Rainsford K D. Ibuprofen: pharmacology, efficacy and safety[J]. Inflammopharmacology, 2009, 17 (6): 275-342. doi: 10.1007/s10787-009-0016-x pmid: 19949916
[4]	Fatehifar M, Borghei S M. Application of moving bed biofilm reactor in the removal of pharmaceutical compounds (diclofenac and ibuprofen)[J]. Journal of Environmental Hemical Engineering, 2018, 6 (4): 5530-5535.
[5]	Ebele A J, Abdallah M A E, Harrad S. Pharmaceuticals and personal care products (PPCPs) in the freshwater aquatic environment[J]. Emerging Contaminants, 2017, 3 (1): 1-16. doi: 10.1016/j.emcon.2016.12.004
[6]	Lee H, Peart T E, Svoboda M L. Determination of endocrine-disrupting phenols, acidic- pharmaceuticals, and personal-care products in sewage by solid-phase extraction and gas chromatography-mass spectrometry[J]. Journal of Chromatography, 2005, 1094: 122-129. doi: 10.1016/j.chroma.2005.07.070
[7]	Li Fuhua. Study on photolysis behavior and mechanism of ibuprofen in water environment[D]. Guangzhou: Guangdong University of Technology, 2016.
[8]	Murat P I, Din E, Onur F. Simultaneous spectrophotometric determination of pseudoephedrine hydrochloride ibuprofen in a pharmaceutical preparation using ratiospectra derivative spectrophotometry and multivariate calibration technique[J]. Journal of Pharmaceutical Biomedical Analysis, 2004, 34 (3): 473-483. doi: 10.1016/S0731-7085(03)00578-8
[9]	Payán M R, López M B, Fernández T R, et al. HPLC determination of ibuprofen, diclofenac and salicylic acid using hollow fiber-based liquid phase microextraction[J]. Analytica Chimica A, 2009, 653 (2): 184-190.
[10]	Jiao Gengsheng, Chen Yangmin, Wang Shurong. Determination of ibuprofen in pharmaceutical preparations by indirect atomic absorption spectrometry[J]. Chinese Journal of Analytical Chemistry, 2004 (10) : 1420.
[11]	Liao Liying. Determination of ibuprofen content in ibuprofen tablets by high performance liquid chromatography[J]. Journal of Mathematical Medicine and Pharmacy, 2015, 28 (12): 1810-1811.
[12]	Hung C Y, Huang Y T, Huang H H, et al. Preparation of (S)-ibuprofen-imprinted polymer and its molecular recognition study[J]. Journal of Applied Polymer Science, 2006, 102 (3): 2972-2979. doi: 10.1002/app.24575
[13]	Wang Ying, Li Nan. Molecular imprinting technology and its application[J]. Chemical Industry and Engineering Progress, 2010, 29 (12): 2315-2323.
[14]	Wei Xiao, Pan Jianming, Dai Jiangdong, et al. Advances in the application of surface molecular imprinting in analytical chemistry[J]. Ion Exchange and Adsorption, 2013 (2): 183-192.
[15]	Wang Manman, Zeng Guangming. Synthesis of surface molecular imprinted TiO₂/graphene photocatalysts and its highly efficient photocatalytic degradation of target pollutant under visible light irradiation[J]. Applied Surface Science, 2016, 390: 368-376. doi: 10.1016/j.apsusc.2016.08.119
[16]	Cheng W, Liu Z, Yan W. Preparation and application of surface molecularly imprinted silica gel for selective extraction of melamine from milk samples[J]. Talanta, 2013, 116 (6): 396-402. doi: 10.1016/j.talanta.2013.05.067
[17]	Fang G Z, Tan J, Yan X P. An ion-imprinted functionalized silica gel sorbent prepared by a surface imprinting technique combined with a sol-gel process for selective solid-phase extraction of cadmium (Ⅱ)[J]. Analytical Chemistry, 2005, 77 (6): 1734-1739. doi: 10.1021/ac048570v
[18]	Jiang X, Wei T, Zhao C, et al. A novel sol-gel material prepared by a surface imprinting technique for the selective solid-phase extraction of bisphenol A[J]. Talanta, 2007, 72 (1): 119-125. doi: 10.1016/j.talanta.2006.10.006
[19]	Npk A, At A, Ak B, et al. Synthesis and application of molecularly imprinted polymers using sol-gel matrix imprinting technology for the efficient solid-phase extraction of BPA from water-ScienceDirect[J]. Microchemical Journal, 2020, 157: 104965. doi: 10.1016/j.microc.2020.104965
[20]	Xu Lu, Zhi Keke, Zhang Yagang, et al. Preparation and properties of molecular-imprinted polymer on arsenic surface of roxa by sol-gel method[J]. Analytical Laboratory, 2019, 38: 1-6.
[21]	Kabir A, Furton K G, Malik A. Innovations in sol-gel microextraction phases for solvent free sample preparation in analytical chemistry[J]. Trends in Analytical Chemistry, 2013, 45: 197-218. doi: 10.1016/j.trac.2012.11.014
[22]	Lofgreen J E, Ozin G A. Controlling morphology and porosity to improve performance of molecularly imprinted sol-gel silica[J]. Chemical Society Reviews, 2014.
