Al2O3性质诱导Cu-Al体系催化草酸二乙酯加氢合成醇醚酯

doi:10.3969/j.issn.2097-2806.2025.09.003

摘要/Abstract

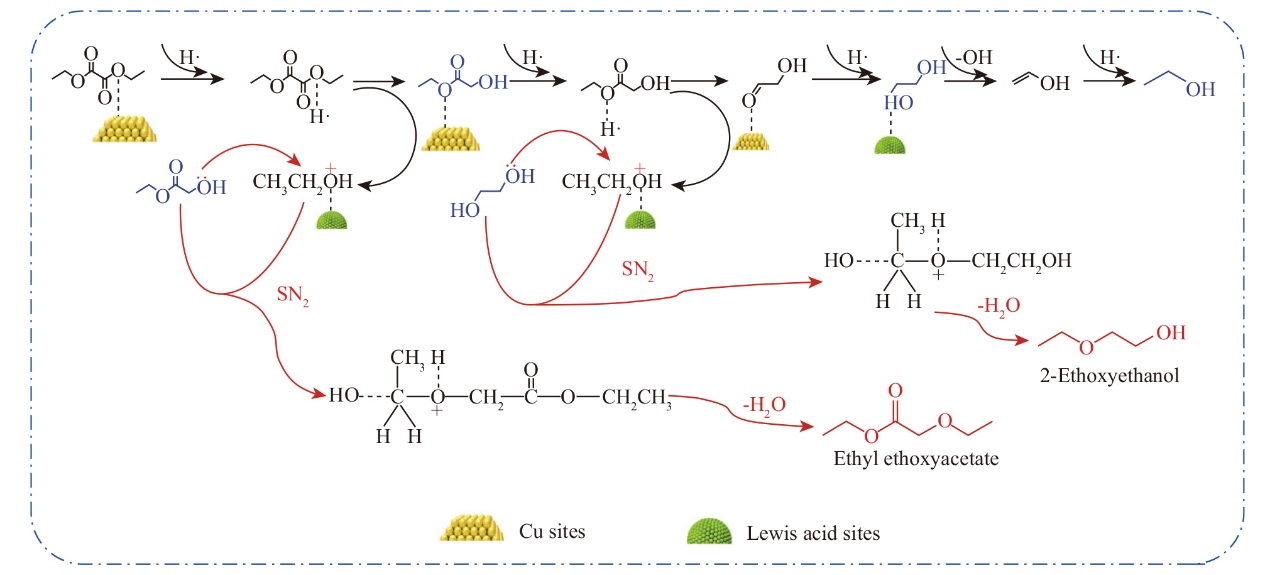

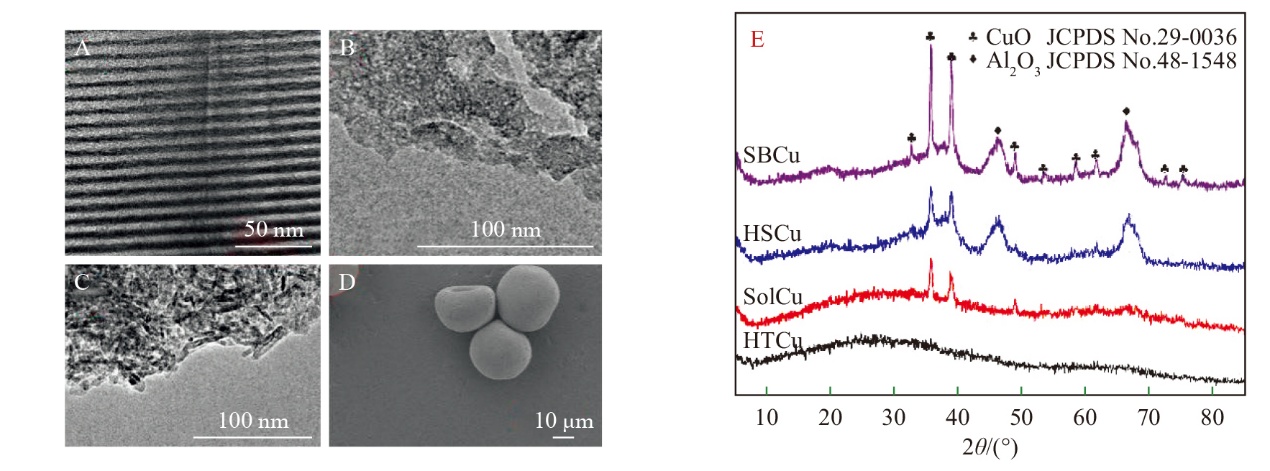

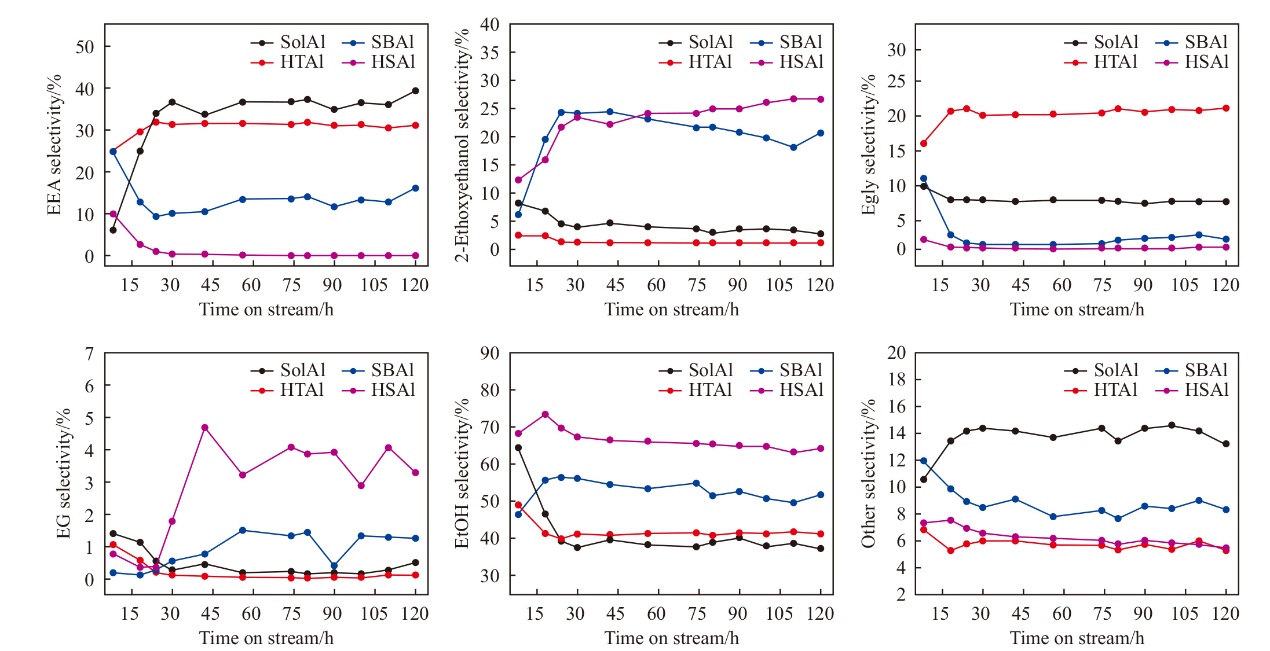

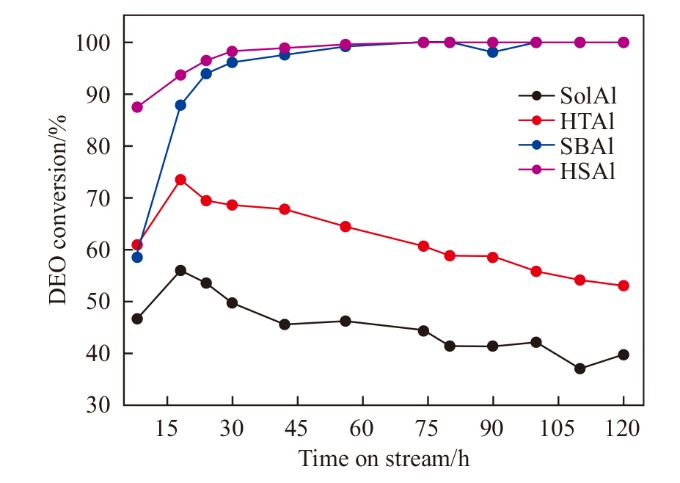

摘要： 通过XRD、XPS、N₂O滴定以及²⁷Al MAS-NMR等多种表征技术，探讨了Cu/Al₂O₃催化剂在草酸二乙酯（DEO）加氢合成醇醚酯过程中的结构-性能关系。结果表明，当Al₂O₃的晶体构型相同时，增加比表面积可有效细化铜纳米粒子（Cu NPs）的尺寸，进而提高DEO的转化率。同时，γ-Al₂O₃（HSAl和SBAl）负载的Cu NPs尺寸较小，促进反应向深度加氢方向进行，生成乙醇（EtOH）和乙二醇（EG）。相比之下，无定形Al₂O₃（HTAl和SolAl）表面的Cu NPs尺寸较大，导致转化率降低，主要产物为乙醇酸乙酯（Egly）。尽管不同晶体结构的Al₂O₃中的Al³⁺离子配位形式存在差异，但实验数据表明Al³⁺离子配位差异并未对加氢反应的催化性能产生显著影响。醇醚酯化学品的形成关键在于Cu位点与酸性位点之间的相互作用。其中，EG和EtOH经SN2机制脱水形成2-乙氧基乙醇，Egly与EtOH则通过SN2机制形成乙氧基乙酸乙酯（EEA）。本研究为优化煤基乙二醇工艺以实现多样化产品组合提供了理论依据。

关键词: 草酸酯加氢, 醇醚酯, Cu-Al催化剂, SN2机制

Abstract:

The structure-performance relationship of Cu/Al₂O₃ catalysts in the hydrogenation of diethyl oxalate （DEO） for the synthesis of alcohol ether esters has been investigated by various characterization techniques including XRD, XPS, N₂O titration, and ²⁷Al MAS-NMR. The results showed that when the crystal configurations of Al₂O₃ were the same, increasing the specific surface area could effectively refine the size of copper nanoparticles （Cu NPs）, and ultimately improve the conversion of DEO. Meanwhile, the smaller size of γ-Al₂O₃（HSAl and SBAl） loaded Cu NPs promotes the reaction towards the deep hydrogenation to produce ethanol （EtOH） and ethylene glycol （EG）. Besides, the larger size of Cu NPs on the surface of amorphous Al₂O₃ （HTAl and SolAl） resulted in a lower conversion rate, where ethyl glycolate （Egly） is the main product. Despite there are differences in Al³⁺ ionic coordination in Al₂O₃ with different crystal structures, the experimental data showed that the differences in Al³⁺ ionic coordination did not significantly affect the catalytic performance in the hydrogenation reaction. The formation of alcohol-ether ester chemicals is critically dependent on the interactions between Cu sites and acidic sites. Among them, EG and EtOH were dehydrated to form 2-ethoxyethanol via the SN2 mechanism, while Egly and EtOH were reacted to form ethyl ethoxyacetate （EEA） via the SN2 mechanism. This study provides a theoretical basis for the optimization of the coal-based glycol processes to achieve a diversified product portfolio.

Key words: oxalate hydrogenation, alcohol ether esters, Cu-Al catalyst, SN2 mechanism

中图分类号:

TQ519

武鹏, 马丽娜, 郑昱, 罗莉, 苏立红, 栗俊田. Al₂O₃性质诱导Cu-Al体系催化草酸二乙酯加氢合成醇醚酯[J]. 日用化学工业（中英文）, 2025, 55(9): 1100-1111.

Peng Wu, Lina Ma, Yu Zheng, Li Luo, Lihong Su, Juntian Li. The synthesis of alcohol ether esters through the catalytic hydrogenation of diethyl oxalate in the Cu-Al systems induced by Al₂O₃ properties[J]. China Surfactant Detergent & Cosmetics, 2025, 55(9): 1100-1111.

图/表 18

参考文献 30

[1]	Guo F Q, Zhao L Y, Wang L G, et al. Development and research progress of catalytic system of high-value derivatives of dimethyl oxalate[J]. Clean Coal Technology, 2024, 30 (2) : 123-142.
[2]	Lang X, Zhao L H, Cui F K, et al. Industrial side-line test of catalyst for kiloton dimethyl oxalate synthesis[J]. Low-Carbon Chemistry And Chemical Engineering, 2020, 45 (6) : 48-51, 57.
[3]	Zheng J W, Huang L L, Cui C H, et al. Ambient-pressure synthesis of ethylene glycol catalyzed by C₆₀-buffered Cu/SiO₂[J]. Science, 2022, 376 (6590) : 288.
[4]	Yang Q C, Fan Y J, Liu C L, et al. A promising alternative potential solution for sustainable and economical development of coal to ethylene glycol industry: Dimethyl oxalate to methyl glycolate process[J]. Energy, 2023, 277: 127668.
[5]	Bai F D, Zhang L, et al. Research and application progress on synthesis process of methyl glycolate[J]. Low-Carbon Chemistry and Chemical Engineering, 2024, 49 (1) : 60-69.
[6]	Zhang H X, Liu G G, et al. Technological advances in the production of high value oxygen-containing chemicalsfrom coal via dimethyl oxalate[J]. Journal of Fuel Chemistry and Technology, 2023, 51 (11) : 1576-1592.
[7]	Zhu Y F, Zhu Y L, Ding G Q, et al. Highly selective synthesis of ethylene glycol and ethanol via hydrogenation of dimethyl oxalate on Cu catalysts: influence of support[J]. Applied Catalysis A-General, 2013, 468: 296-304.
[8]	Ding J, Fan M H, Zhong Q, et al. Single-atom silver-manganese nanocatalysts based on atom-economy design for reaction temperature-controlled selective hydrogenation of bioresources-derivable diethyl oxalate to ethyl glycolate and acetaldehyde diethyl acetal[J]. Applied Catalysis B-Environment and Energy, 2018, 232: 348-354.
[9]	Wu P, Zhang J, Huang Z J, et al. Construction of a dual catalytic mechanism controlled by multiple active sites in Cu-Al catalysts to facilitate gas-phase hydrogenation of diethyl oxalate to ethyl ethoxyacetate[J]. Fuel, 2022, 324: 124806.
[10]	Linderberg M T, Moge M, Sivadasan S. Claisen condensation as a facile route to an α-alkoxy-cinnamate: Synthesis of ethyl (2S) -2-ethoxy-3- (4-hydroxyphenyl)propanoate[J]. Organic Process Research & Development, 2004, 8 (6) : 838-845.
[11]	Olah M, Boros Z, Hornyanszky G, et al. Isopropyl 2-ethoxyacetate-an efficient acylating agent for lipase-catalyzed kinetic resolution of amines in batch and continuous-flow modes[J]. Tetrahedron, 2016, 72 (46) : 7249-7255.
[12]	Wang X M, Wen C L, et al. N-octyltrimethylammonium bromide-assisted self-assembly of CoMo precursors to prepare CoMoS/Al₂O₃ catalysts for highly selective hydrodesulfurization of thiophene[J]. Fuel, 2024, 366: 131387.
[13]	Li H, Zhang Y H, Xiang R, et al. Preparation of Co/Zr/Al₂O₃-Pt/ZSM-5 catalysts for syngas to liquid fuels[J]. Journal of Fuel Chemistry and Technology, 2024, 52 (5) : 656-666.
[14]	Kwak J H, Mei D, et al. Coordinatively unsaturated Al³⁺ centers as binding sites for active catalyst phases of platinum on γ-Al₂O₃[J]. Science, 2009, 325 (5948) : 1670-1673.
[15]	Qi N, Jin B F, Zhu Y X, et al. Fe₂O₃-modified CuO catalyst for efficient catalytic silicon hydrochlorination to trichlorosilane: Catalyst structural evolution[J]. Applied Catalysis A-General, 2023, 664: 119327.
[16]	Liang C X, et al. The role of copper species on Cu/γ-Al₂O₃ catalysts for NH₃-SCO reaction[J]. Applied Surface Science, 2012, 258 (8) : 3738-3743.
[17]	Jraba N, Makhlouf T, Delahay G, et al. Catalytic activity of Cu/η-Al₂O₃ catalysts prepared from aluminum scraps in the NH₃-SCO and in the NH₃-SCR of NO[J]. Environmental Science and Pollution Research, 2022, 29 (6) : 9053-9064.
[18]	Kondratenko E V, Takahashi N, Nagata N, et al. Operando UV/Vis analysis of the synergy effect between copper and gold in nitric oxide reduction over gold and copper on alumina catalysts[J]. Chemcatchem, 2015, 7 (23) : 3956-3962.
[19]	Zhu G Z, Liang P, et al. Analysis of Si, Cu, and their oxides by X-ray photoelectron spectroscopy[J]. Journal of Chemical Education, 2024, 101 (3) : 1162-1170.
[20]	Ai X, Xie H M, Chen S M, et al. Highly dispersed mesoporous Cu/γ-Al₂O₃ catalyst for RWGS reaction[J]. International Journal of Hydrogen Energy, 2022, 47 (33) : 14884-14895.
[21]	Zhang G Y, Long J Y, Wang X X, et al. Controlled synthesis of pure and highly dispersive Cu (Ⅱ), Cu (Ⅰ), and Cu (0) /MCM-41 with Cu[OCHMeCH₂NMe₂] ₂/MCM-41 as precursor[J]. New Journal of Chemistry, 2009, 33 (10) : 2044-2050.]
[22]	Liu M Z, et al. Insights into the nature of Cu doping in amorphous mesoporous alumina[J]. Journal of Materials Chemistry A, 2013, 1 (46) : 14592-14605.
[23]	Hao S L, Peng W C, Zhao N, et al. Hydrogenolysis of glycerol to 1, 2-propanediol over various supported Cu catalysts[J]. Journal of Fuel Chemistry and Technology, 2012, 40 (5) : 594-600.
[24]	Wang Y, Chen Y X, Yu F, et al. One-step synthesis of dimethyl ether from syngas on ordered mesoporous copper incorporated alumina[J]. Journal of Energy Chemistry, 2016, 25 (5) : 775-781.
[25]	Cai F F, Zhu W, Xiao G M. Promoting effect of zirconium oxide on Cu-Al₂O₃ catalyst for the hydrogenolysis of glycerol to 1, 2-propanediol[J]. Catalysis Science & Technology, 2016, 6 (13) : 4889-4900.
[26]	Shi Y, Zhou Q M, Qin Z F, et al, Hierarchically structured Pt/K-Beta zeolites for the catalytic conversion of n-heptane to aromatics[J]. Microporous And Mesoporous Materials, 2021, 324: 111308.
[27]	Zhang Z L, Zhu Y H, Asakura H, et al. Thermally stable single atom Pt/m-Al₂O₃ for selective hydrogenation and CO oxidation[J]. Nature Communications, 2017, 8: 16100.
[28]	Guo T L, Tang N F, Lin F, et al. High-loading single-atom copper catalyst supported on coordinatively unsaturated Al₂O₃ for selective synthesis of homoallylboronates[J]. Chemsuschem, 2020, 13 (12) : 3115-3121.
[29]	Wu P, et al. Study on the deactivation and regeneration mechanism of Cu-Al catalyst in the hydrogenation of diethyl oxalate[J]. Fuel, 2024, 365: 131153.
[30]	Sun J, et al. Freezing copper as a noble metal-like catalyst for preliminary hydrogenation[J]. Science Advances, 2018, 4 (12).

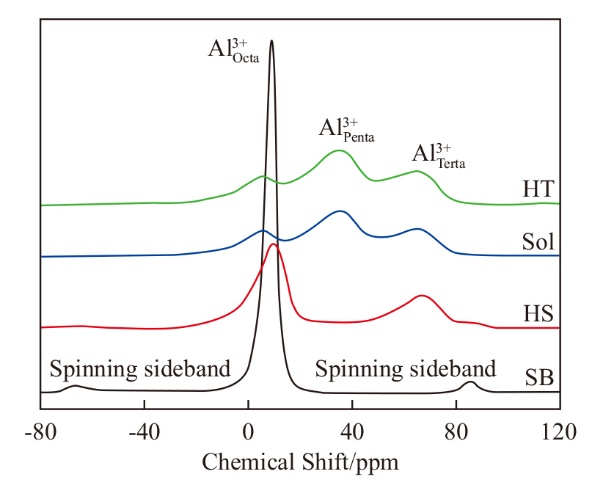

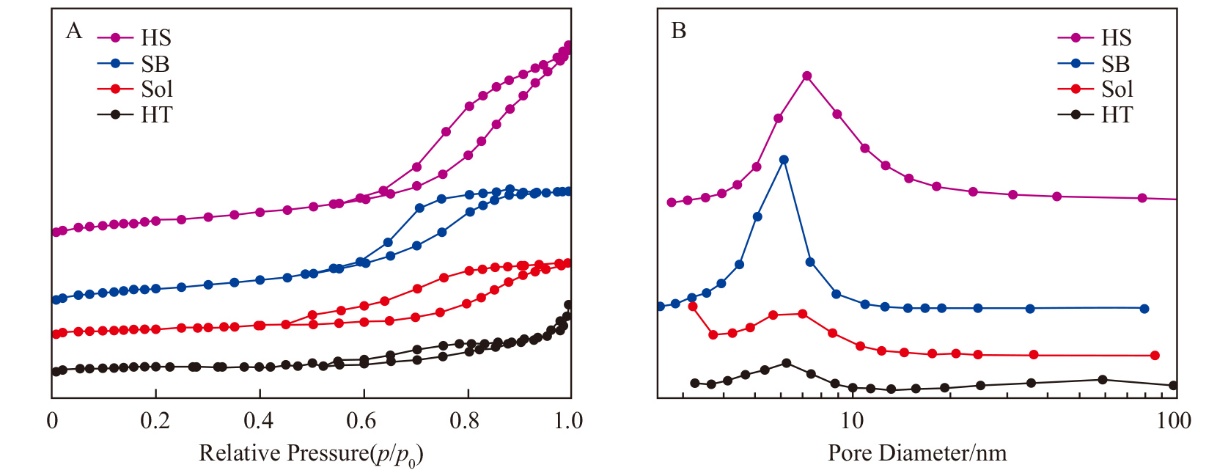

Sample	N₂ isothermal adsorption and desorption			Coordination mode of Al³⁺/%
Sample	S_BET/ （m²/g）	V_P/ （cm³/g）	D_P/nm	Al³⁺_Octa	Al³⁺_Penta	Al³⁺_Terta
Sol	129.0	0.3	5.1	27.5	44.7	27.8
HT	187.5	0.3	10.1	29.1	42.2	28.7
HS	251.8	0.8	9.0	65.0	0	35.0
SB	256.1	0.5	5.6	100.0	0	0

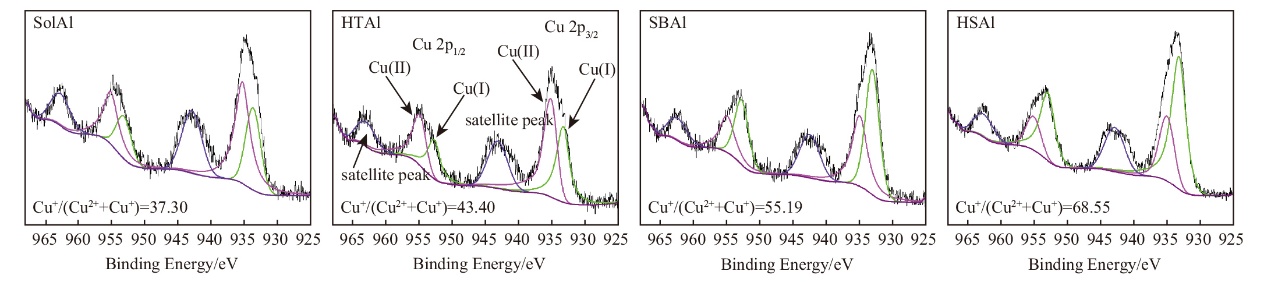

Sample	N₂ isothermal adsorption and desorption			Cu loading^a/%	The ratio of Cu⁺/（Cu²⁺+Cu⁺） ^b/%
Sample	S_BET/ （m²/g）	V_P/ （cm³/g）	D_P/nm	Cu loading^a/%	The ratio of Cu⁺/（Cu²⁺+Cu⁺） ^b/%
SolCu	87.9	0.3	5.5	12.4	37.3
HTCu	118.3	0.2	11.0	12.4	43.4
SBCu	210.9	0.4	5.6	11.0	55.2
HSCu	209.1	0.7	8.7	12.1	68.6

Sample	Acidity/（mmol/g_cat）				N₂O titration
Sample	weak acid	medium-strong acid	strong acid	total acid quantity	D_Cu/%	S_{BET Cu}/（m²/g）	d_Cu/nm
SolAl	0.016	0.010	0	0.026	20.27	11.10	4.93
HTAl	0.014	0.017	0.001	0.032	29.94	16.31	3.34
SBAl	0.015	0.025	0.003	0.043	34.31	21.18	2.91
HSAl	0.010	0.021	0.005	0.036	35.70	23.28	2.80
